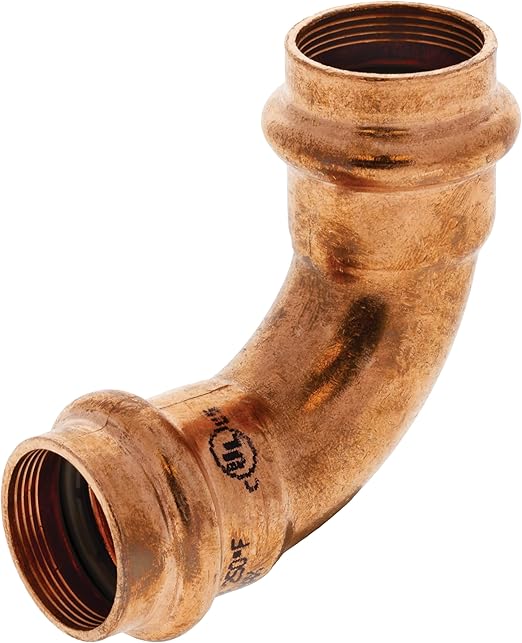

Nibco PC9607LT12 Press 90 Degree Elbow Copper Fitting 1/2 in. OD

Product Description

The NIBCO PC9607LT12 PressACR copper 90-degree elbow features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, creating a robust seal without flame, solder, or flux. This fitting changes pipeline direction by 90 degrees and is used when a longer sweep is required.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO 90-degree elbow provides a method of changing the pipeline direction by 90 degrees. It features press connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9607LT12

Technical Specifications

• Operating pressure: 700 psi max
• Temperature range: -40°F to 250°F
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• Size: 1/2 in.
• Connector Type: Press Threaded
• Exterior Finish: Copper
• Material Type: Copper
