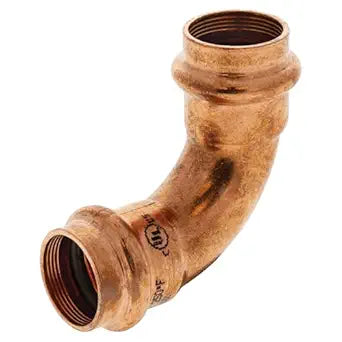

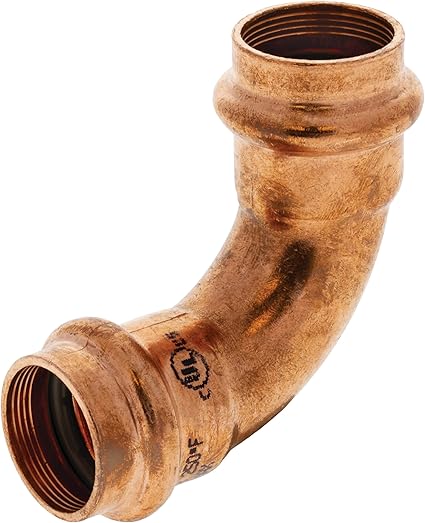

Nibco PC9607LT118 Press 90 Degree Elbow Copper Fitting 1-1/8 in. OD (Outer Diameter)

Product Description

The NIBCO PC9607LT118 PressACR copper 90-degree elbow features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, creating a robust seal without flame, solder, or flux. This elbow fitting with press connections changes pipeline direction by 90 degrees and is used when a longer sweep is required.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO copper elbow fitting provides a 90-degree change in pipeline direction with a clean, robust seal. Suitable for use with various refrigerants and oils.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9607LT118

Technical Specifications

• Size: 1-1/8 in.
• Material: Copper
• Brand: NIBCO
• Connector Type: Elbow
• Exterior Finish: Copper
• Number of Pieces: 1
• Manufacturer: NIBCO INC.
• Operating pressure: 700 psi max
• Temperature range: -40°F to 250°F
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
