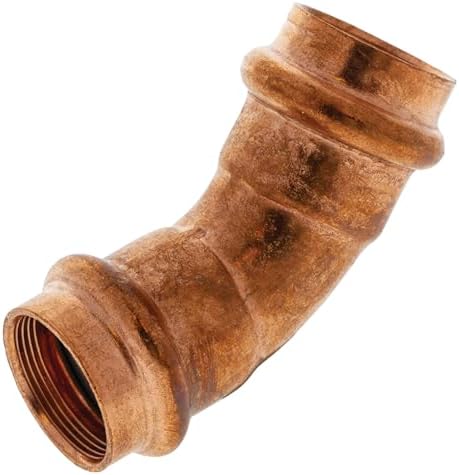

Nibco PC9606lt58 45 Degree Copper Elbow Fitting 5/8 inches Outside Diameter

Product Description

The NIBCO PC9606LT58 PressACR copper 45-degree elbow features an internal bead and a gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, creating a robust seal without flame, solder, or flux. This fitting changes the pipeline direction by 45 degrees and is used when a longer sweep is required.

• Operating pressure: 700 psi max
• Temperature range: -40 °C to 121 °C
• Approved refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A. 2B, R50. 7, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved oils: POE, PAG, MO, PAO, PVE and ABR456A

Product Highlights

The NIBCO 45-degree copper elbow fitting provides a method for changing the direction of the pipeline by 45 degrees. It has pressure connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9606LT58

Technical Specifications

• Size: 5/8 in.
• Material: Copper
• Brand Name: Nibco
• Connector Type: Elbow
• Exterior Finish: Copper
• Number of Pieces: 1
