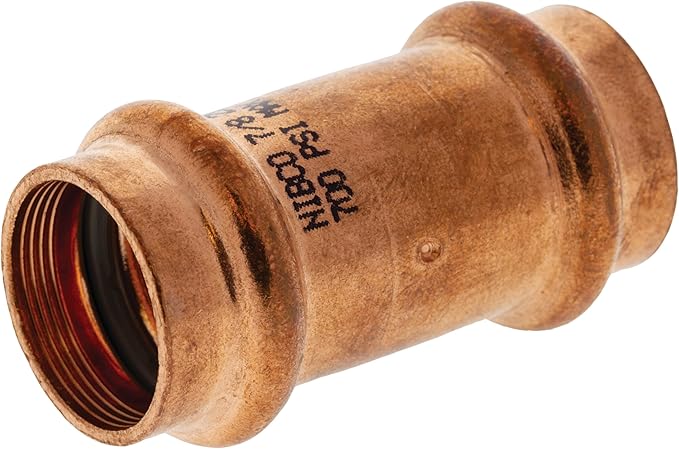

Nibco PC9600DS78 Press Coupling Copper Fitting 7/8 in. OD

Product Description

The NIBCO PC9600DS78 PressACR copper coupling features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, creating a robust seal in seconds without flame, solder or flux. This coupling has press connections and a dimple tube stop, connecting two lengths of tube. It has an operating pressure of 700 psi max and a temperature range of -40°F to 250°F.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO PressACR copper coupling provides a robust seal in seconds without flame, solder, or flux. Approved for use with a variety of refrigerants and oils.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9600DS78

Technical Specifications

• Size: 7/8 in.
• Material: Copper
• Brand: NIBCO
• Connector type: Coupling
• Exterior finish: Copper
• Number of pieces: 1
• Manufacturer: NIBCO INC.
• Operating pressure: 700 psi max
• Temperature range: -40°F to 250°F
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
