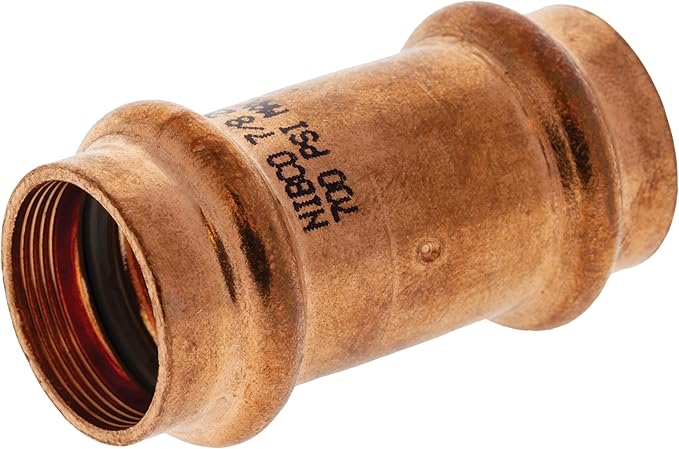

Nibco PC9600DS14 Press Coupling 1/4 in. OD Copper Fitting

Product Description

The NIBCO PC9600DS14 PressACR copper coupling features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, creating a robust seal in seconds without flame, solder, or flux. This fitting provides a method to connect two lengths of tube with press connections and a dimple tube stop.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

Connects two lengths of tubing with a robust, clean seal. Features press connections, inboard bead, and gray HNBR O-ring.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9600DS14

Technical Specifications

• Size: 1/4 in.
• Material: Copper
• Brand: NIBCO
• Connector type: Coupling
• Exterior finish: Copper
• Number of pieces: 1
