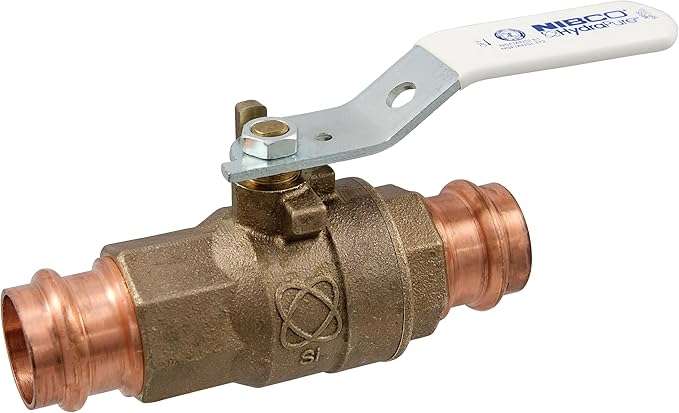

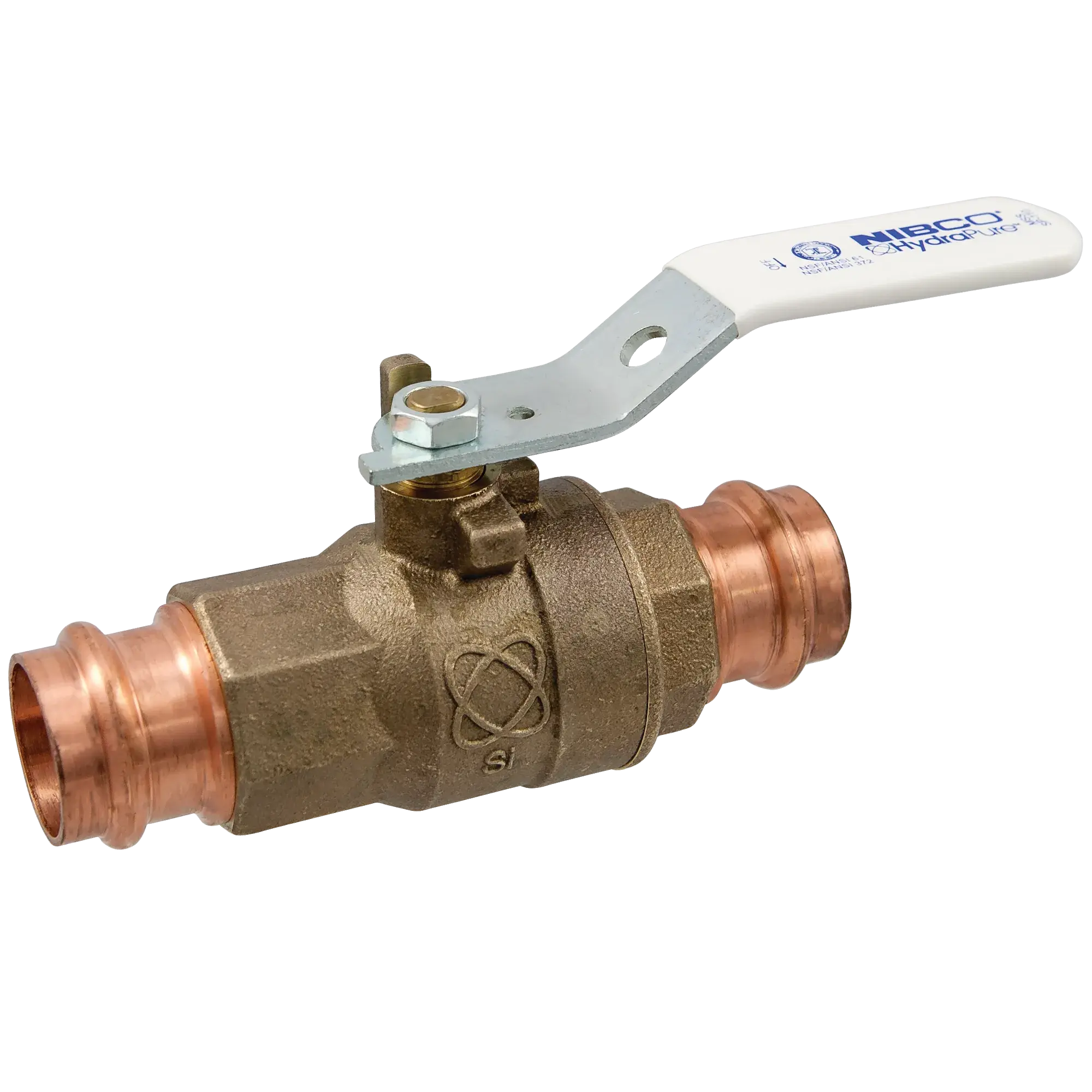

Nibco PC585-80-LF-2 Ball Valve - Lead-Free, Full Port, Press Ends, 250 PSI

Product Description

The NIBCO PC585-80-LF-2 ball valve body is manufactured from lead free* HydraPure Performance Bronze alloy and is dezincification resistant. Designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure.

• Maximum service temperature 250°F
• Copper-to-copper connections
• Full port

Product Highlights

The ball valve features a blowout-proof stem, reinforced PTFE seat rings, and a press leak-detection feature. It conforms to MSS SP-110 and is NSF/ANSI/CAN certified.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC585-80-LF-2
• Country of Origin: Domestic

Technical Specifications

• Valve pressure rating: 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature: 250°F
• Connections: Copper-to-copper connections
• Port: Full port
• Stem: Blowout-proof stem
• Seat rings: Reinforced PTFE seat rings
• End connections: Press x press female end connections
• Feature: Press leak-detection feature
• Handle options: Multiple handle options, including NIB-Seal®
• Resistant: Dezincification resistant
• Material: Lead-free Bronze
• Conforms to: MSS SP-110
• NSF/ANSI/CAN: NSF/ANSI/CAN-372
• IAPMO/ANSI: IAPMO/ANSI Z1157
• ANSI: ANSI 372-8, ANSI 61, ANSI Z1157
• ASME: ASME A112.4.14
• ASTM: ASTM B371 Alloy C69300, ASTM B16 Alloy C36000, ASTM B584 Alloy C87600, ASTM A351 CF8M (11/4"-3"), ASTM B75 Alloy C12200
• CSA Certified: CSA B125.14
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110, MSS SP-145
• Material Type: RPTFE
• Maximum Temperature: 250
• NSF: NSF 61, NSF 372-8
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 250
• Pressure - Maximum: 250 psi
• Pressure Class: 250#
• Recommended Valve Application: Potable Water
• Temperature Range: Up to 250° F
• Valve Body Material: Bronze
• Valve Body Style: 2 piece
• Valve Disc Material: Stainless Steel
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 2 in
• Valve Type: Ball Valve
• cUPC Certified: Yes
• Exterior Finish: Bronze
• Inlet Connection Type: Press
• Number of Ports: 1
• Specification Met: NSF
• Brand: NIBCO
• Manufacturer: NIBCO INC.
