Nibco PC585-80-LF-112 Fig No PC-585-80-LF, 1-1/2 in. LF Bronze Ball Valve, Press

Product Description

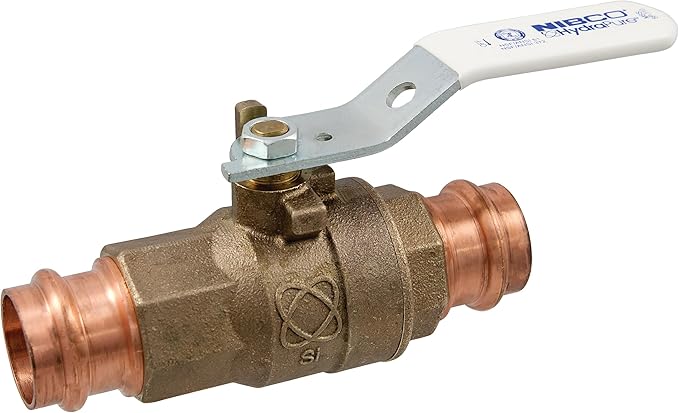

The NIBCO PC585-80-LF-112 Press System ball valve body is manufactured from lead free HydraPure Performance Bronze alloy and is dezincification resistant. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250°F
• Lead Free, Copper-to-copper connections

Product Highlights

The valve ensures a clean, permanent, watertight seal in seconds, with no flame, solder or flux. Conforms to MSS SP-110 and is NSF/ANSI/CAN-61, NSF/ANSI/CAN-372, IAPMO/ANSI Z1157 certified.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC585-80-LF-112
• Country of Origin: Domestic

Technical Specifications

• Material: Bronze
• Brand: NIBCO
• Exterior Finish: Bronze
• Inlet Connection Type: Press
• Number of Ports: 1
• Specification Met: NSF
• Manufacturer: NIBCO INC.
• Valve pressure rating: 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature: 250 deg F
• Actuator Type: Standard Lever
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Female Press
• Inlet to Outlet Length: 7.56 in
• Media: Water
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: PC-585-80-LF
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 deg F
• Top to Inlet Center: 3.32 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• MPN: PC58580LF112
• UPC: 039923349699
• Country of Origin: United States
