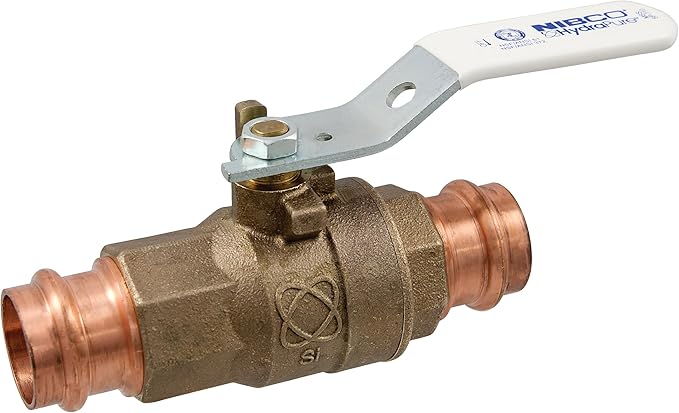

Nibco PC585-80-LF 1 in. DZR Silicon Bronze Full Port Press 250# Ball Valve

Product Description

The NIBCO PC585-80-LF 1 in. DZR Silicon Bronze Full Port Press Ball Valve has a pressure rating of 250 psi/17.2 bar non-shock cold working pressure and a maximum service temperature of 250°F. It features copper-to-copper connections, a full port, and a blowout-proof stem. This valve is dezincification resistant.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250°F
• Copper-to-copper connections

Product Highlights

This NIBCO ball valve is designed for potable water applications and conforms to MSS SP-110 standards.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC585-80-LF-1
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 372-8, ANSI 61, ANSI Z1157
• ASTM: ASTM B-16, ASTM B-371, ASTM B-584, ASTM B75
• Collection: PC-585-80-LF
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110, MSS SP-145
• Material: Bronze
• Material Type: B584, C87600
• Maximum Temperature: 250
• Minimum Temperature: -20
• NSF: NSF 372, NSF 372-8, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 250
• Pressure - Maximum: 250 psi
• Pressure Class: 250#
• Recommended Valve Application: Potable Water
• Temperature Range: -20 to 250 Deg F
• UPC: 039923447432
• Valve Body Material: Bronze
• Valve Body Style: Ball
• Valve Disc Material: Stainless Steel
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
• Brand: NIBCO
• Exterior Finish: Bronze
• Inlet Connection Type: Press
• Number of Ports: 1
• Specification Met: NSF
• Manufacturer: NIBCO INC.
