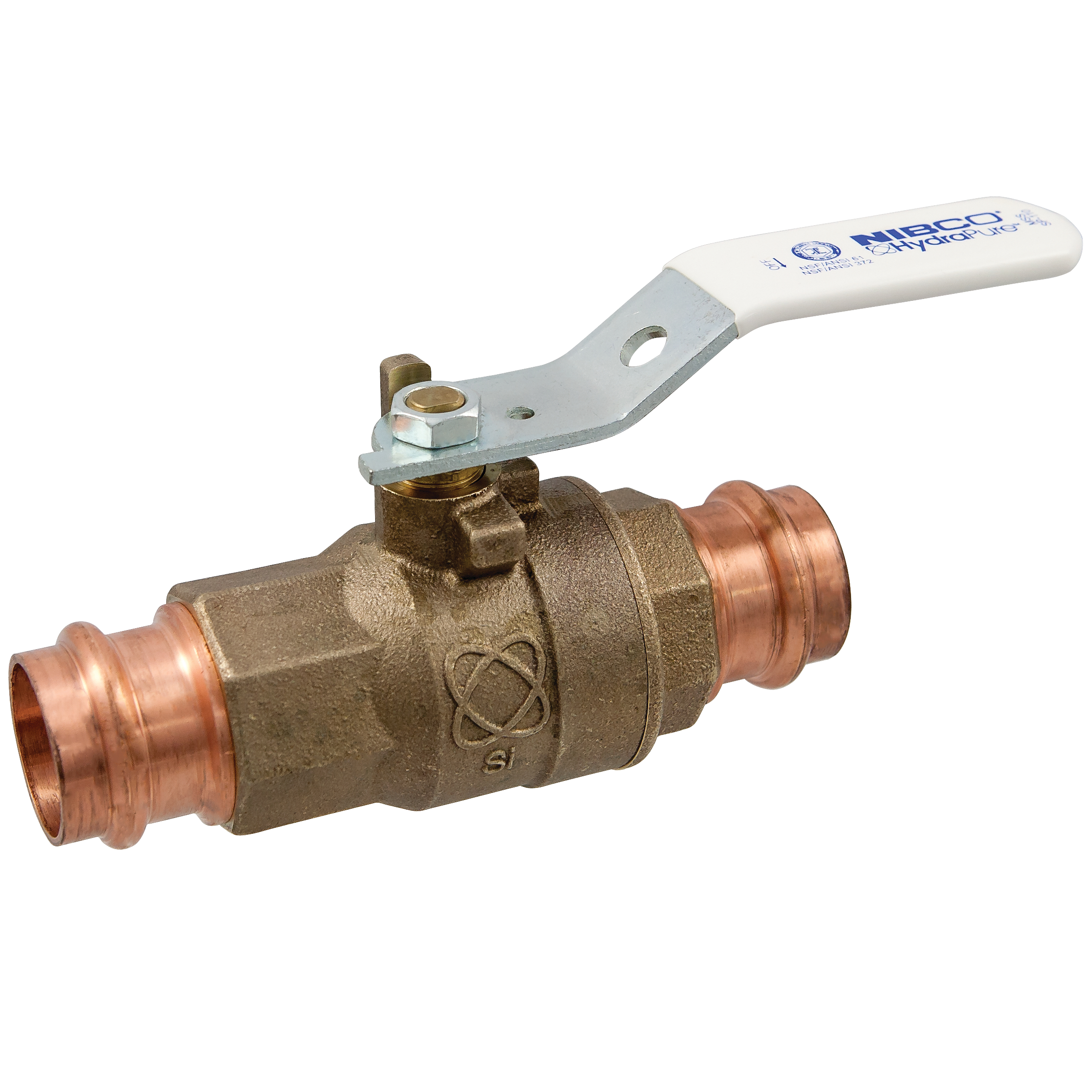

Nibco PC-585-80-LF-NS-2 Lead Free Press Ball Valve

Product Description

The NIBCO PC-585-80-LF-NS-2 is a lead-free bronze ball valve built for the NIBCO Press System, designed for installations in potable water and human consumption applications. It uses press-end connections on both sides, eliminating the need for soldering or threading during installation. The valve is manufactured from HydraPure Performance Bronze to meet lead-free compliance requirements. A distinctive "N" witness mark becomes visible on the fitting once the connection is properly crimped, providing a quick visual confirmation that the joint is complete. Licensed plumbers working on commercial and residential potable water systems will find this valve well suited to fast, reliable shutoff service.

This ball valve is intended for use in copper press piping systems at a nominal size of 2 inches with press x press end connections. It is suited for residential and commercial plumbing systems where lead-free components are required, including domestic water supply and distribution lines. The press connection design makes it a practical choice for retrofit and new construction jobs where open-flame soldering is restricted or impractical.

Key Features

• Lead-free HydraPure Performance Bronze construction meets potable water safety requirements
• Press x press end connections eliminate the need for soldering or threading
• Visual "N" witness mark confirms proper crimp engagement at each connection point
• Full-bore ball valve design supports straightforward shutoff operation
• Compatible with the NIBCO Press System tooling, jaws, and chains
• Backed by a 5-year limited warranty from NIBCO

Compatibility

Designed for use within the NIBCO Press System with compatible pressing tools, jaws, and chains. Intended for 2-inch press x press copper pipe connections in potable water service.

Installation Notes

Installation must be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off and depressurize the water supply completely before beginning any work on the line. Use only NIBCO-approved press tooling and the correct jaw size for 2-inch connections to ensure a proper crimp and a visible "N" witness mark. Refer to NIBCO technical data sheets and installation catalogs for full engineering guidance before proceeding.

Technical Specifications

• Valve Type: Ball Valve
• Connection Type: Press x Press
• Nominal Size: 2 inches
• Material: Lead-Free HydraPure Performance Bronze
• Lead-Free Compliant: Yes
• Warranty: 5-year limited
• UPC: 039923349828

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC-585-80-LF-NS-2
