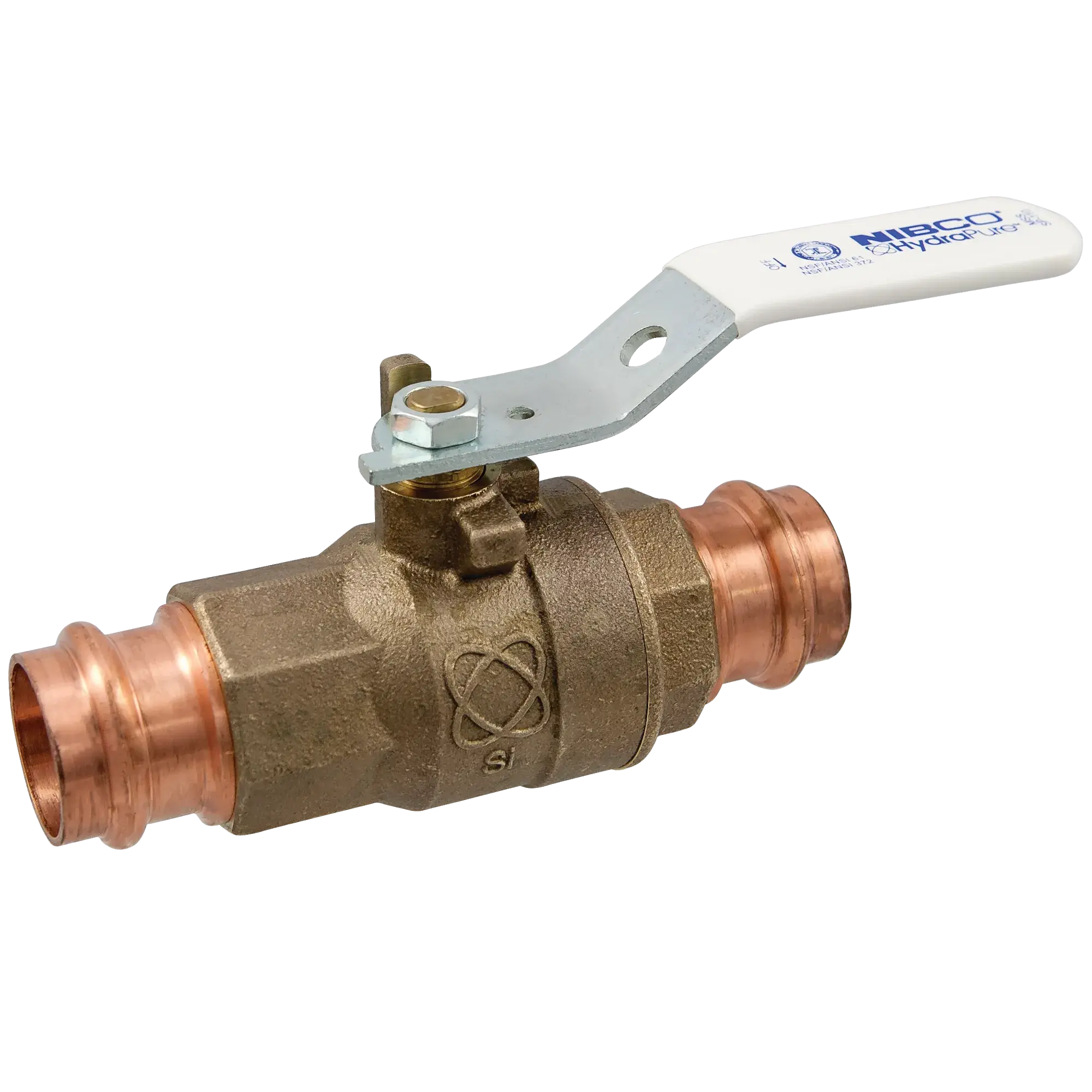

Nibco PC-585-80-LF-NS-1-1/2 Ball Valve Lead-Free Press Ends Full Port (1-1/2)

Product Description

The Nibco PC-585-80-LF-NS-1-1/2 is a lead-free HydraPure Performance Bronze press-system ball valve designed for press-to-connect copper installations. It features a full-port flow path with reinforced PTFE seat rings and a blowout-proof stem, rated for 250 psi (17.2 bar) cold working pressure and a maximum service temperature of 250�F (121�C). Press ends use an inboard bead and EPDM O-ring with press leak-detection for copper-to-copper joinery.

• Lead-free HydraPure Performance Bronze body with dezincification resistance
• Press x press copper end connections with inboard bead, EPDM O-ring and press leak-detection
• Full port design, reinforced PTFE seat rings, blowout-proof stem; rated 250 psi and 250�F (121�C)

Product Highlights

Full-port lead-free press ball valve with bronze body, press leak-detection, 250 psi/250�F rating.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC-585-80-LF-NS-1-1/2

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: PC-585-80-LF-NS-1-1/2
• Size: 1-1/2
• Body Material: HydraPure Performance Bronze (lead-free)
• End Connections: Press x press (press-to-connect copper end connections with inboard bead and EPDM O-ring)
• Port Type: Full port
• Pressure Rating: 250 psi / 17.2 bar (non-shock cold working pressure)
• Maximum Service Temperature: 250�F (121�C)
• Seat Material: Reinforced PTFE seat rings
• Stem: Blowout-proof stem
• Leak Detection: Press leak-detection feature
• Handle Options: Multiple, including NIB-SEAL insulated/locking/extended/standard/SS variants
• Corrosion Resistance: Dezincification resistant
• Certifications/Standards: MSS SP-110; NSF/ANSI/CAN-61; NSF/ANSI/CAN-372; IAPMO/ANSI Z1157
• Application: Designed for copper-to-copper press-fit installations; installed with press-fit tool (no solder, flux, or flame)
