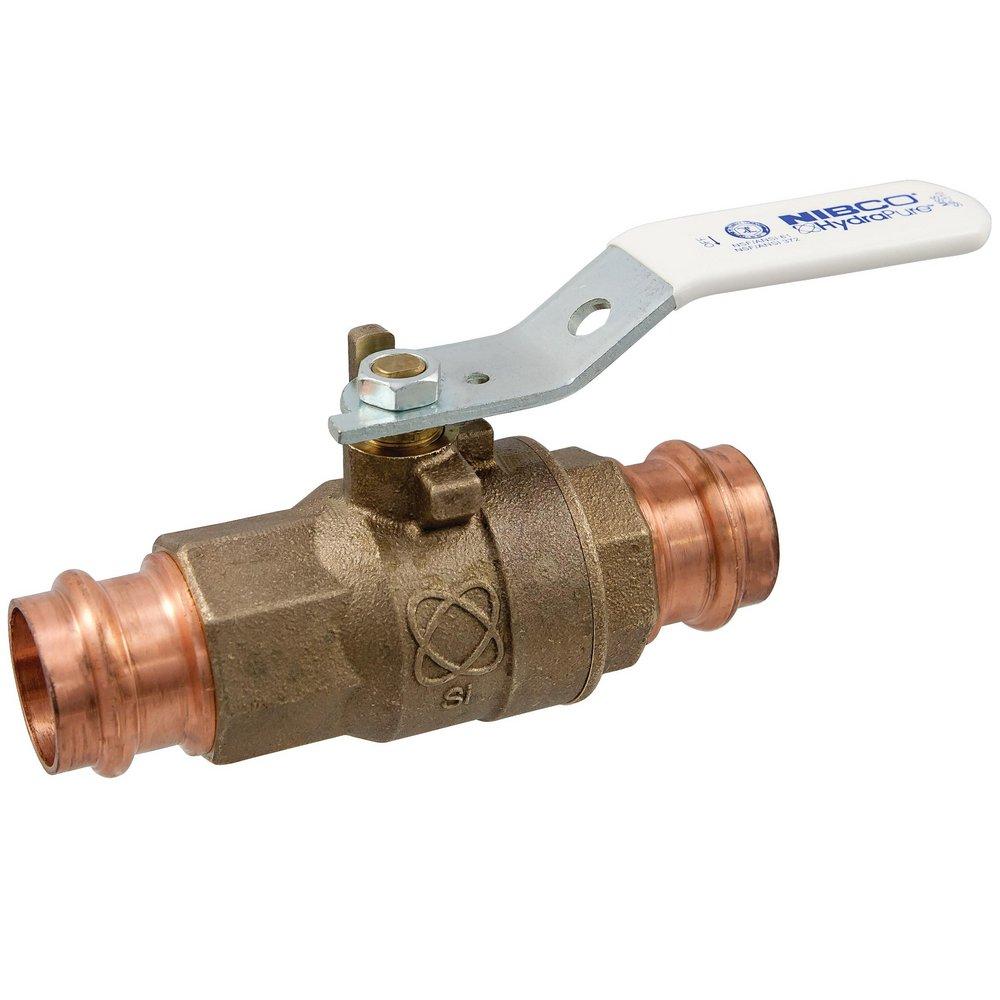

NIBCO Nibco PC-585-80-LF-1IN DZR Silicon Bronze Full Port Press 250# Ball Valve (1 in)
NIBCO Nibco PC-585-80-LF-1IN DZR Silicon Bronze Full Port Press 250# Ball Valve (1 in)

Nibco PC-585-80-LF-1IN DZR Silicon Bronze Full Port Press 250# Ball Valve (1 in)

NIBCO
Brand: NIBCO
SKU: PC-585-80-LF-1IN
Availability: In Stock

Ships same day if ordered by 12 pm
$83.24
$83.24
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Nibco PC-585-80-LF-1IN is a 1 in. DZR silicon bronze full port ball valve with press x press female end connections designed for potable water service. It features a blowout-proof stem, reinforced PTFE seat rings, and a stainless steel disc, with a press leak-detection feature for press fittings. The valve is rated 250 psi non-shock cold working pressure and has a maximum service temperature of 250�F; NSF and cUPC certified and lead law compliant.

  • Full port DZR silicon bronze body with reinforced PTFE seat rings and stainless steel disc.
  • Press x press female end connections with press leak-detection feature; full port design for minimal flow restriction.
  • Blowout-proof stem and lever handle (zinc-plated steel); rated 250 psi, maximum 250�F; NSF 61/372 and cUPC certified; lead law compliant.

Product Highlights

1 in DZR silicon bronze full port press ball valve; 250 psi, 250�F; potable water service; NSF and lead law compliant.

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: PC-585-80-LF-1IN
  • Country of Origin: United States
Technical Specifications
Brand
Nibco
Manufacturer Part Number
PC-585-80-LF-1IN
Model
PC-585-80-LF
Item Number
4529696
Valve Size
1 in
Valve Type
Ball Valve
Body Material
DZR silicon bronze (B584, C87600)
Port Type
Full Port
End Connections
Press x press (female end connections)
Operator
Lever handle
Handle Material
Zinc plated steel
Seat Material
Reinforced PTFE
Disc Material
Stainless steel
Stem Type
Blowout-proof
Max Pressure
250 psi (non-shock cold working pressure)
Pressure Class
250#
Max Temperature
250 �F
Temperature Range
-20 to 250 �F
Recommended Application
Potable water
Certifications
NSF 61; NSF 372; cUPC certified; IAPMO listed
Standards
MSS SP-110; MSS SP-145; ANSI 61; ANSI 372; ASTM B-16; ASTM B-371; ASTM B-584; ASTM B75
Lead Free Compliance
Lead law compliant and certified
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Weight
1.674 lb
Dimensions (H x L x W)
1.87 in x 7.52 in x 3.46 in
Origin
Domestic
UPC
039923447432
Collection
PC-585-80-LF
