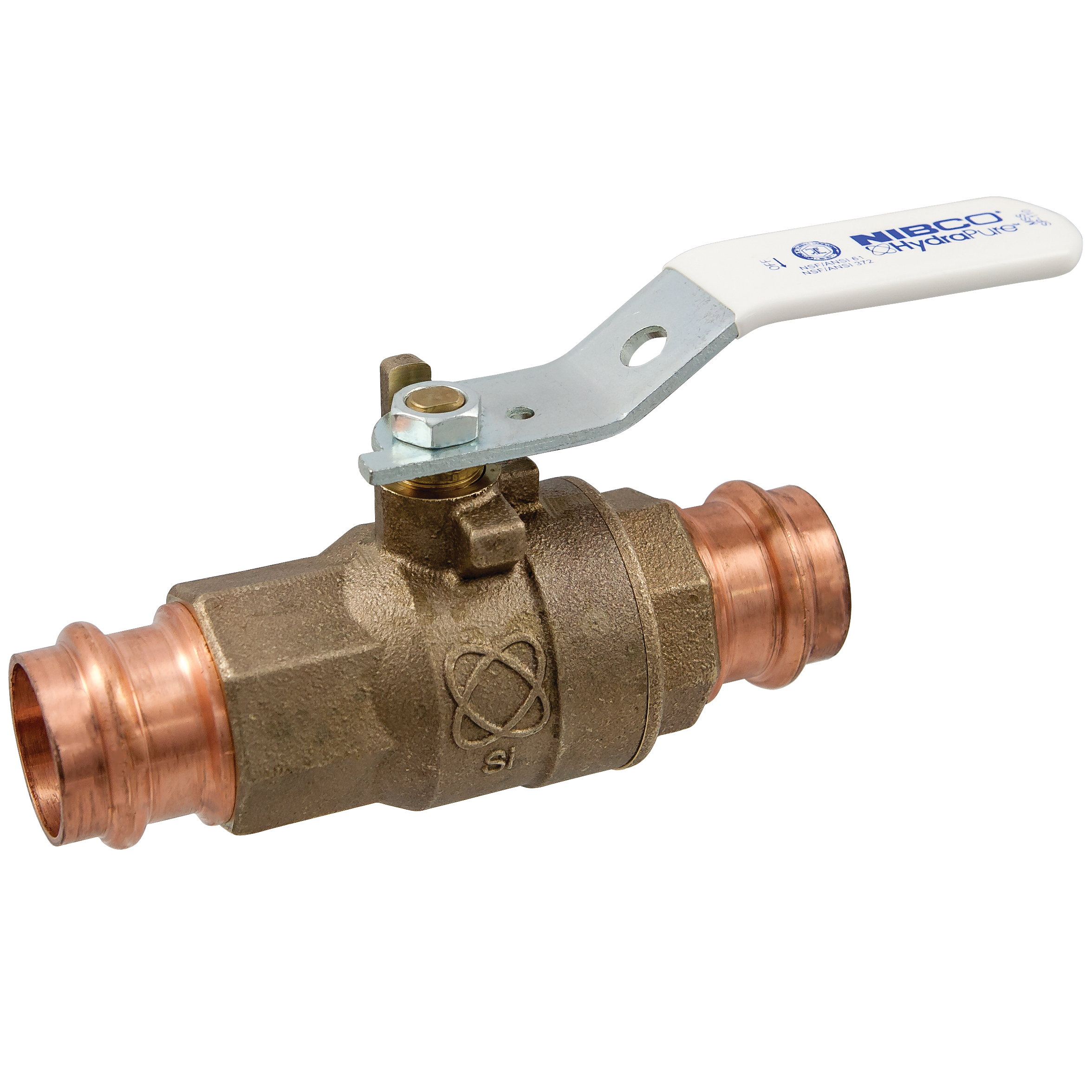

Nibco PC-585-66-LF-LX-2 Press Ball Valve 2 Inch

Product Description

The NIBCO PC-585-66-LF-LX-2 is a lead-free HydraPure Performance Bronze press-connection ball valve with stainless steel trim, sized at 2 inches. It connects using a press-by-press (PxP) end configuration, eliminating the need for soldering or threading during installation. Designed for potable water systems, this valve meets lead-free requirements for applications involving water intended for human consumption. A unique N-witness mark becomes visible on the fitting once the connection is properly crimped, providing a reliable visual confirmation of a complete joint. Licensed plumbing contractors install this valve in commercial and residential copper piping systems where press technology is specified.

This valve is intended for use in copper press systems where a full-port, lead-free ball valve is required at a 2-inch line size. Typical applications include domestic hot and cold water distribution, potable water service, and plumbing systems where open-flame soldering is restricted or not preferred. The press-by-press end configuration suits inline installation between copper press fittings without additional adapters. NIBCO Press System valves are backed by a 5-year limited warranty, making this valve appropriate for long-term commercial and residential plumbing installations.

Key Features

• Lead-free HydraPure Performance Bronze construction meets potable water requirements
• Press-by-press (PxP) end connections eliminate soldering and threading on the jobsite
• Stainless steel trim for corrosion resistance in water service applications
• N-witness mark confirms complete crimp during installation inspection
• 2-inch valve size suits main distribution and branch lines
• Backed by a 5-year limited warranty from NIBCO

Compatibility

Designed for use within the NIBCO Press System, compatible with copper press fittings and tools, jaws, and chains in the NIBCO Press System product line as specified by NIBCO technical data sheets and catalogs.

Installation Notes

Installation should be performed by a licensed plumbing contractor in accordance with applicable local plumbing codes and NIBCO technical data sheets. Shut off the water supply and depressurize and drain the line before pressing the valve into place. Use a compatible pressing tool with the correct jaw size for 2-inch copper press connections. Consult NIBCO engineering documentation for pressure-temperature ratings and system design requirements before installation.

Technical Specifications

• Connection Type: Press x Press (PxP)
• Valve Size: 2 inches
• Material: Lead-Free HydraPure Performance Bronze body, Stainless Steel trim
• Lead-Free Compliant: Yes
• Warranty: 5-year limited
• UPC: 039923410801

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC-585-66-LF-LX-2
