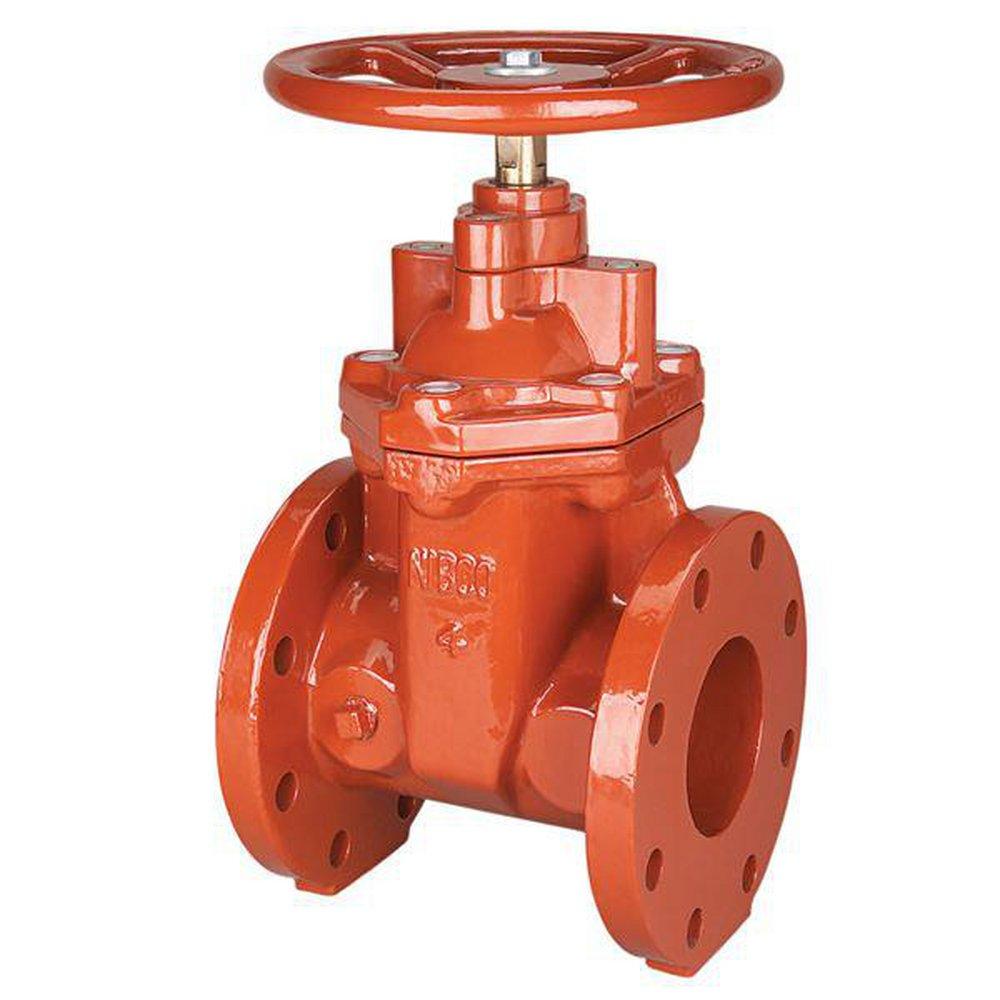

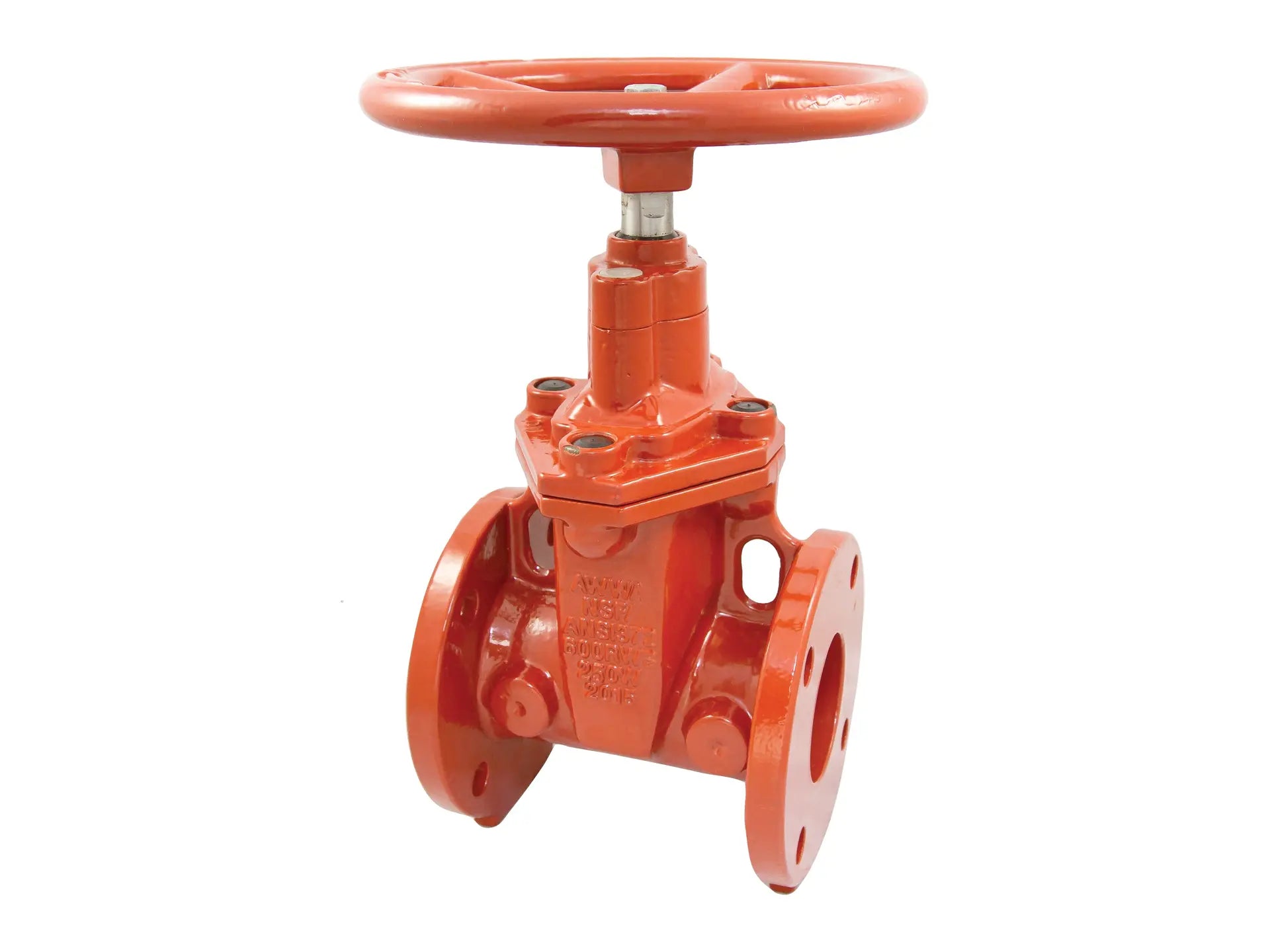

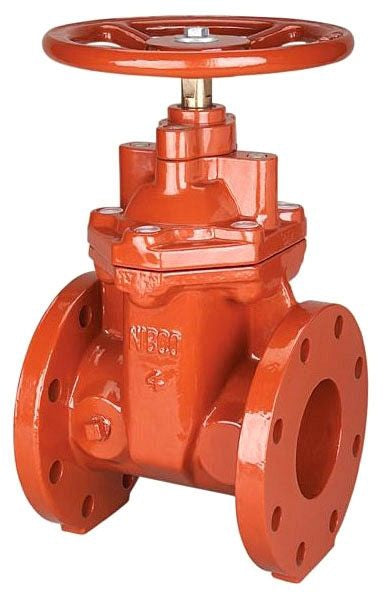

Nibco NSAC05L F-619-RWS Gate Valve Ductile Iron 8 in

Product Description

The NIBCO NSAC05L resilient wedge ductile iron gate valve provides full flow with minimal pressure drop and positive shutoff. The flanged, iron gate valve may be used with confidence in water works and irrigation services. Features flanged, flat face end connections for easy installation and accessibility. The valve may be operated with a hand-wheel.

• 300 psi/20.7 bar non-shock cold working pressure
• Maximum operating temperature of 160°F/71°C
• Fusion bonded epoxy coated body (NSF and FDA certified)

Product Highlights

The NIBCO gate valve is a versatile and economical valve option in irrigation, commercial, mechanical and industrial applications. Meets or exceeds performance requirements of AWWA C509 and C515 for 3" and larger valves.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NSAC05L
• Country of Origin: US

Technical Specifications

• UPC Code: 039923366412
• Type: Gate Valve
• Valve Size: 8
• Connection Type: F -- Flanged
• Seat Material: EPDM Rubber
• Material: Ductile Iron
• Description: F-619-RWS 8 FL RWSSSTM &HDL GT DI300
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Maximum operating temperature: 160°F/71°C
• Pressure: 300 psi/20.7 bar non-shock cold working pressure
• Manufacturer: NIBCO
• Part Number: NSAC05L
• Model: F-619-RWS
• Type of Valve: Gate
• Nominal Pipe Size: 8"
• End Connection Type: F -- Flanged
• Seat Seal Material: EPDM Rubber
• Gate Stem Design: Non-Rising Stem
• Multi-Turn Operator: Standard Handwheel
• Multi-Turn Bonnet Design: Bolted Bonnet
• Pressure Rating (CWP): 250 psi/17.2 Bar CWP
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 35.25"
• Width: 14.74"
• Height: 14.74"
• Connection: Flanged
• CWP: 300
• Stem: Non-Rising
