Product Description

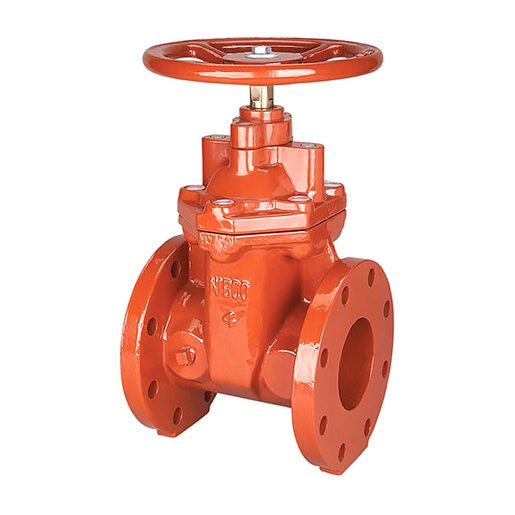

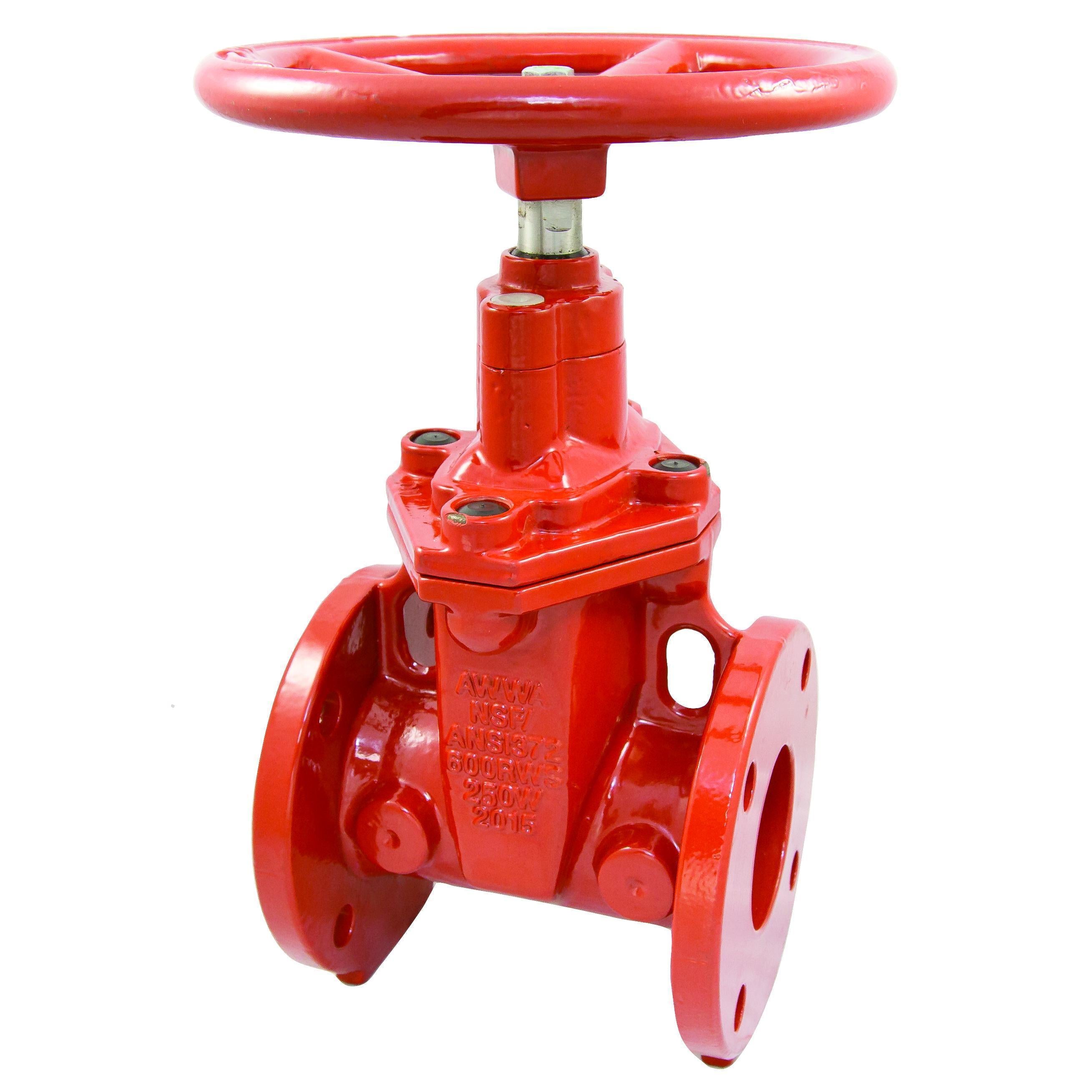

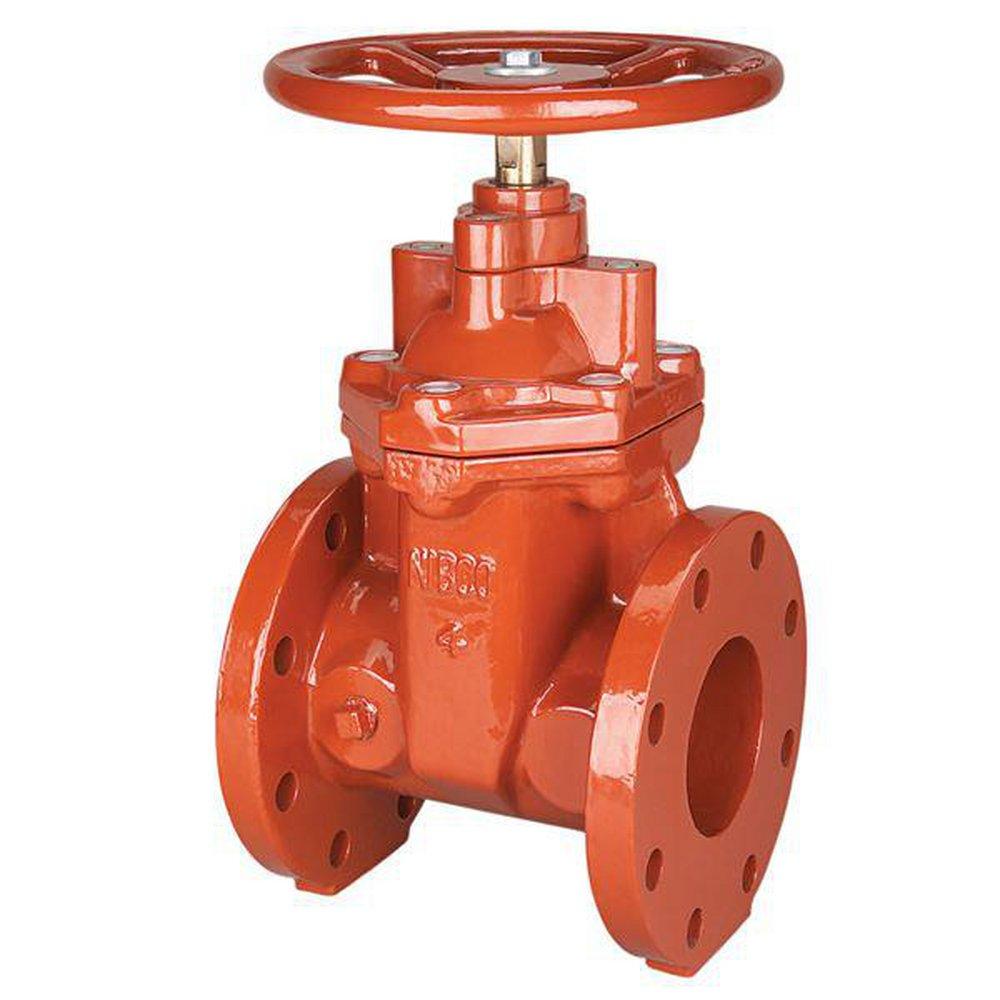

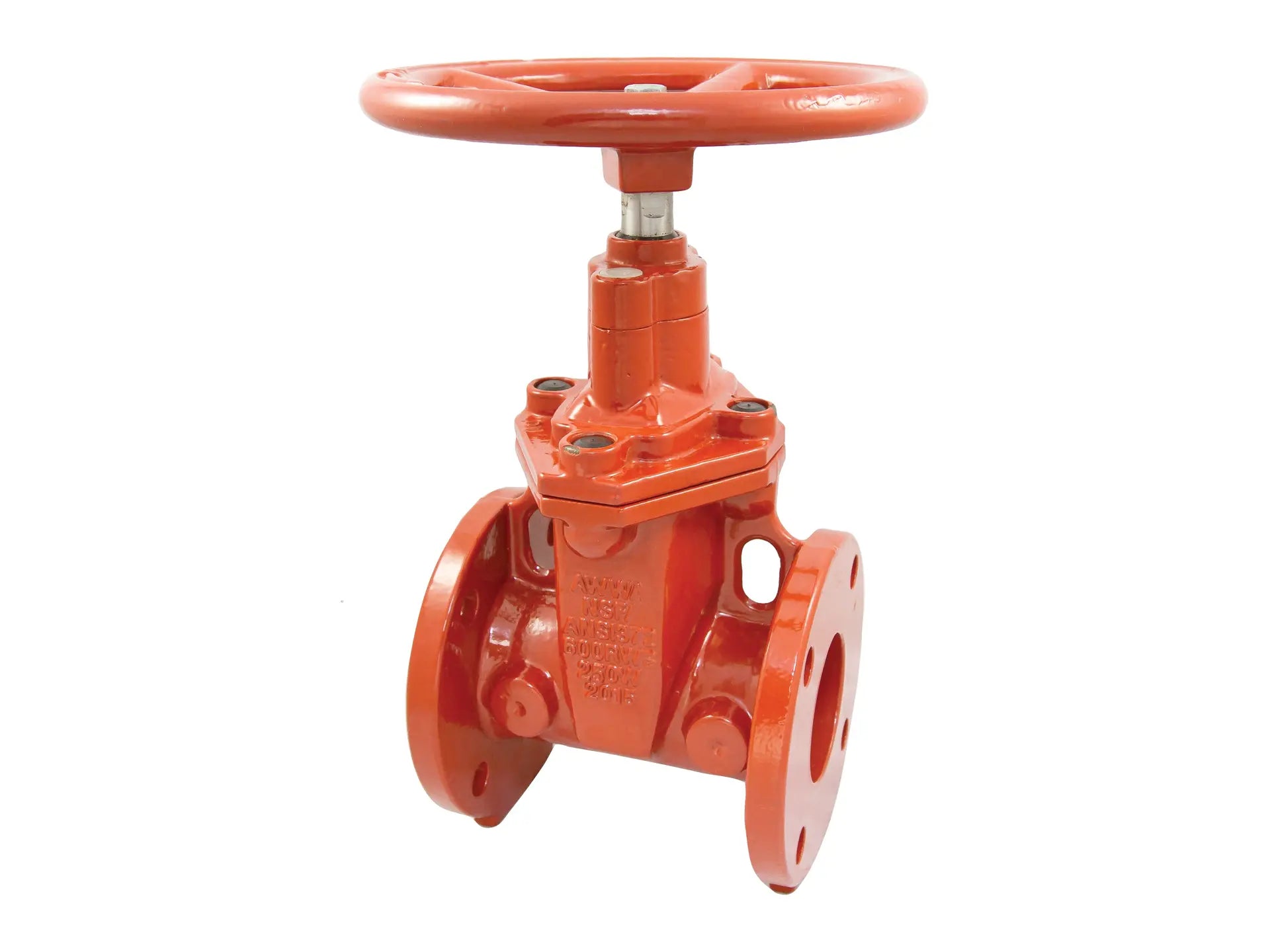

The NIBCO NSAC05H F-619-RWS resilient wedge ductile iron gate valve features flanged, flat face end connections for easy installation. Recommended for positive shutoff where space is a premium. May be operated with a hand-wheel for versatile and economical valve option in irrigation, commercial, mechanical and industrial applications.
- Features flanged, flat face end connections for easy installation
- Non-rising stem gate valves are recommended when positive shutoff is required
- Valve may be operated with a hand-wheel
Product Highlights
The NIBCO gate valve is a versatile and economical valve option in irrigation, commercial, mechanical and industrial applications.
Product Information
Standard Information
-
Brand: NIBCO
-
Manufacturer Part Number: NSAC05H
-
Country of Origin: US
Technical Specifications
-
UPC Code: 039923366399
-
Type: Gate Valve
-
Valve Size: 4 in
-
Connection Type: Flanged
-
Seat Material: EPDM Rubber
-
Material: Ductile Iron
-
Valve Operator: Standard Handwheel
-
Turns/Operation: Multi-Turn
-
Actuator Type: Handwheel
-
Body Material: Ductile Iron
-
Domestic/Import: Domestic
-
End Style: Flanged
-
Hand Wheel Diameter: 10.2 in
-
Inlet to Outlet Length: 9 in
-
Nominal Size: 4 in
-
Pressure Class: 125 lb
-
Pressure Rating: 300 psi
-
Series: F-619-RWS
-
Softgoods Material: EPDM
-
Temperature Rating: 160 deg F
-
Top to Inlet Center: 13-1/2 in
-
Trim Material: 304 Stainless Steel
-
Gate Stem Design: Non Rising Stem
-
Multi-turn Bonnet Design: Bolted Bonnet
-
Multi-turn Operator: Standard Handwheel
-
Nominal Pipe Size: 4"
-
Potable Water Code: Ll Compliant Nsf/Ansi 372
-
Pressure Rating (cwp): 250 psi CWP
-
Seat/seal Material: Epdm Rubber
-
Type Of Valve: Gate
-
Finish: Epoxy Painted
-
Lead-Free/Contains Lead: Lead-Free
-
Material Standard: ASTM A536 65-45-12/ASTM A536/ASTM D2000/ASTM B584 C83600/ASTM D2000/ASTM A536/ASTM A276 S41000
-
Media: Water
-
Operator Type: Standard Handwheel
-
Seal Material: EPDM
-
Stem Material: 304 Stainless Steel
-
Manufacturer: NIBCO
-
Part Number: NSAC05H
-
Model: F-619-RWS
-
Pressure Rating (CWP): 250 psi/17.2 Bar CWP
-
Includes: Wheel Handle
-
Item: Valve
-
Operating Type: Manual
-
Regulated: No
