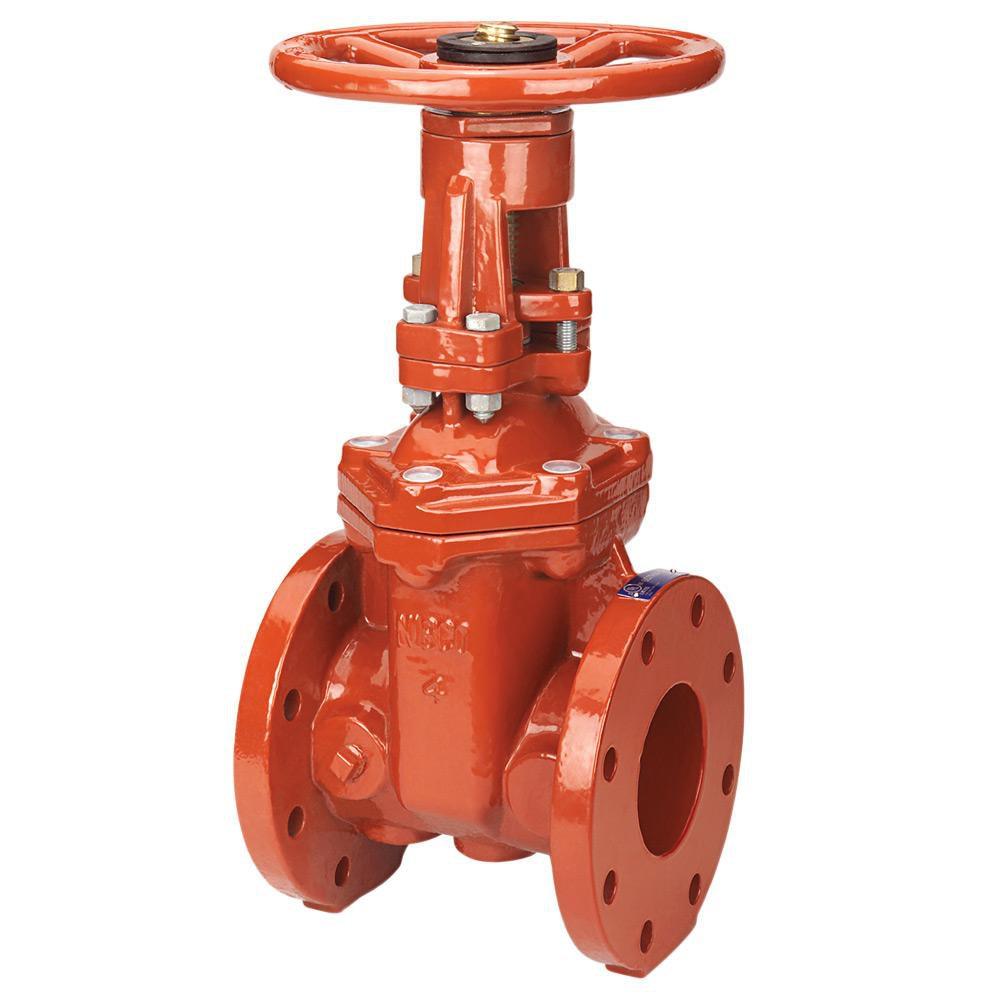

NIBCO NS2921H F-607-RWS 4 In. Ductile Iron Flanged Gate Valve

Product Description

The NIBCO F-607-RWS 4 In. Ductile Iron Flanged Gate Valve, with MPN NS2921H, is designed for commercial and mechanical systems. This valve features a resilient wedge design and is constructed from ductile iron, providing strength and durability. The flanged end style allows for easy installation and maintenance.

• 300 psi pressure rating
• Handwheel actuator for user comfort
• Outside screw and yoke design

Product Highlights

This valve is suitable for use in fire protection and industrial applications. Its epoxy-coated body offers added protection against corrosion.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Product Name: F-607-RWS 4 In. Ductile Iron Flanged Gate Valve

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• Finish: Epoxy Coated
• Nominal Size: 4 In.
• Pressure Rating: 300 psi
• Top to Inlet Center: 21 In.
• Inlet to Outlet Length: 9 In.
• Trim Material: 304 Stainless Steel
