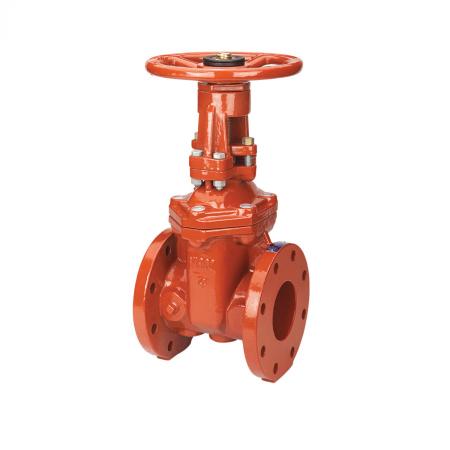

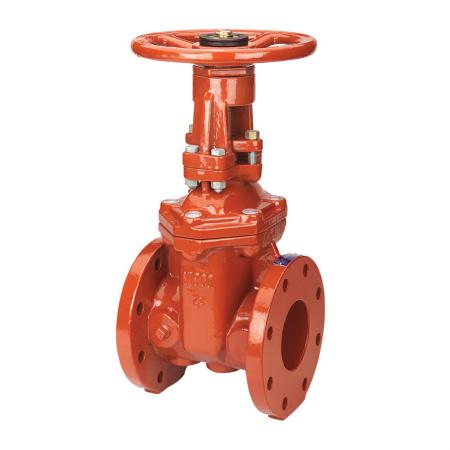

NIBCO NS2920XF F-607-RWS 3 Flanged Ductile Iron Gate Valve

Product Description

The NIBCO Flow Gate Valve, MPN NS2920XF, is designed to control various media like air, gas, and water in different applications. This valve features a three-inch nominal size with flanged and flat face connections, making it suitable for both installation and maintenance.

• Handwheel actuator for easy manual operation
• Durable ductile iron body with epoxy coating
• Suitable for fire protection systems and approved by relevant standards

Product Highlights

This valve is engineered for reliability and efficiency. It is bolted with a resilient wedge for effective sealing and offers a non-shock cold working pressure rating of three hundred psi.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Domestic/Import: Domestic

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• End Style: Flanged
• Media: Air/Gas/Water
• Nominal Size: 3 in
• Pressure Class: 125 lb
• Pressure Rating: 300 psi
• Series: F-607-RWS
• Softgoods Material: EPDM
• Hand Wheel Diameter: 7.9 in
• Inlet to Outlet Length: 8 in
• Top to Inlet Center: 19.7 in
• Trim Material: 304 Stainless Steel
