NIBCO NS2920M F-607-RWS 10 F OSYRW SSSTM ULFMGT DI300

Product Description

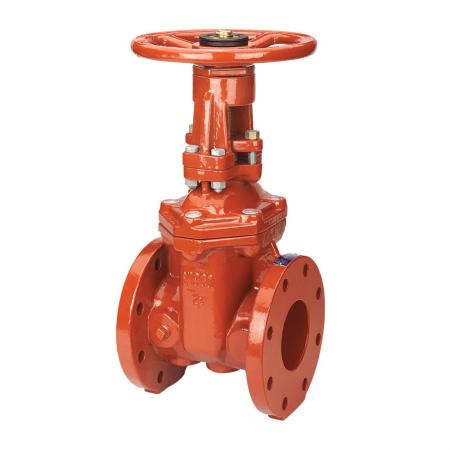

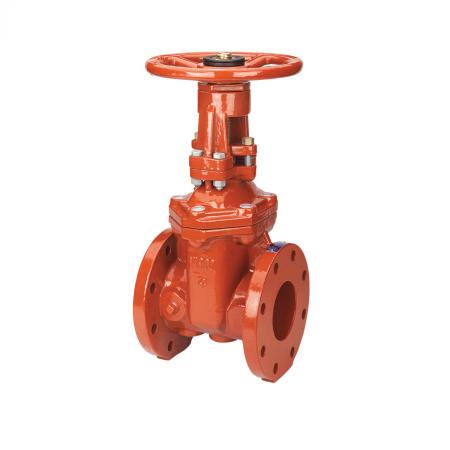

The NIBCO NS2920M is a flow gate valve designed for critical applications. This resilient wedge gate valve is part of the F-607-RWS series. It has a nominal size of ten inches and a pressure rating of 300 psi. With flanged connections, it is easy to install in various systems.

• 300 psi cold working pressure
• Flanged end style for ease of installation
• Ductile iron body with stainless steel trim

Product Highlights

This valve is suitable for fire protection systems, offering reliable performance with minimal pressure loss.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: F-607-RWS

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• End Style: Flanged
• Pressure Class: 125 lb
• Pressure Rating: 300 psi
• Trim Material: 304 Stainless Steel
• Nominal Size: 10 in
• Inlet to Outlet Length: 13 in
• Hand Wheel Diameter: 16.4 in
• Top to Inlet Center: 44.8 in
• Softgoods Material: EPDM
