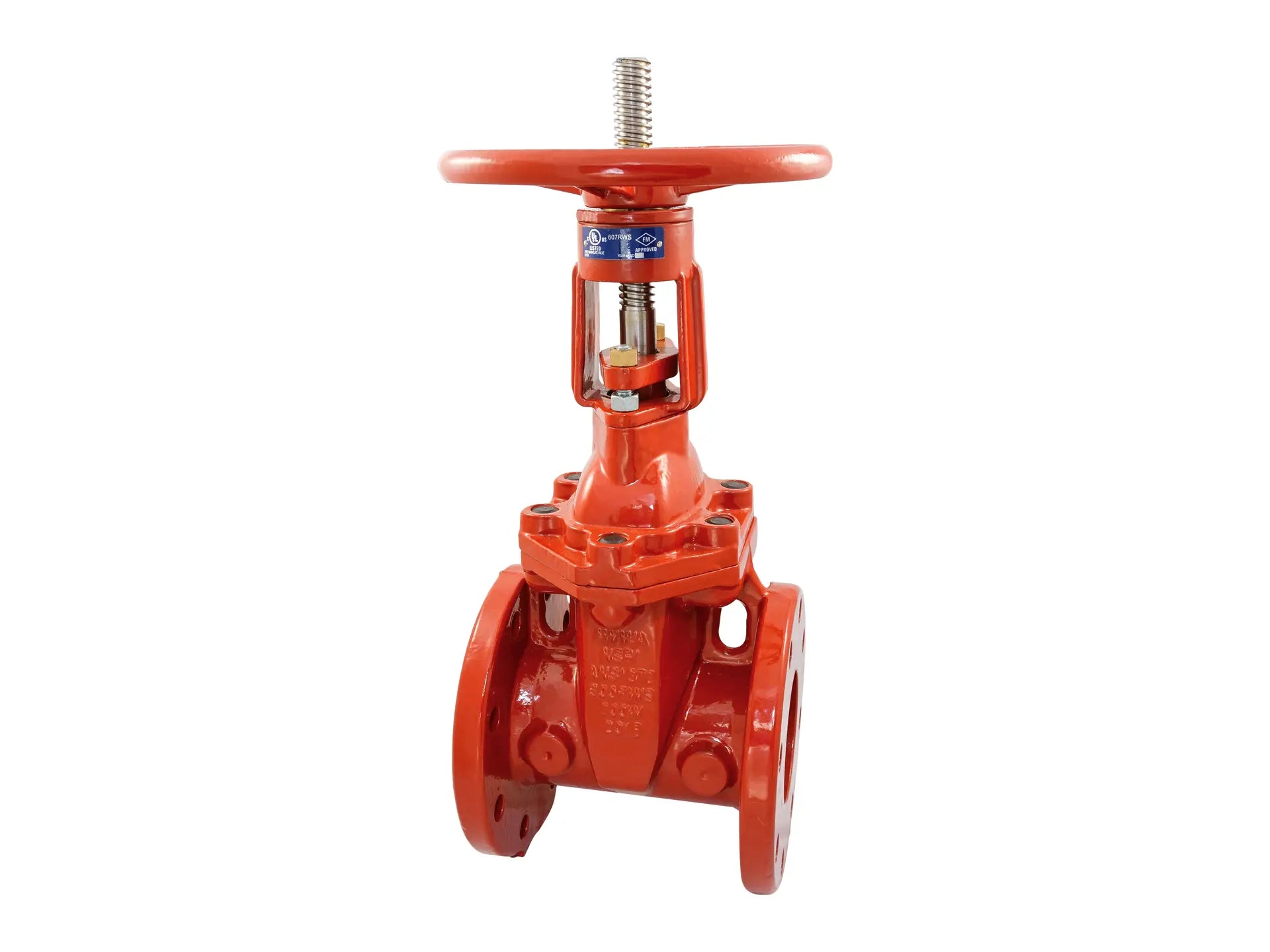

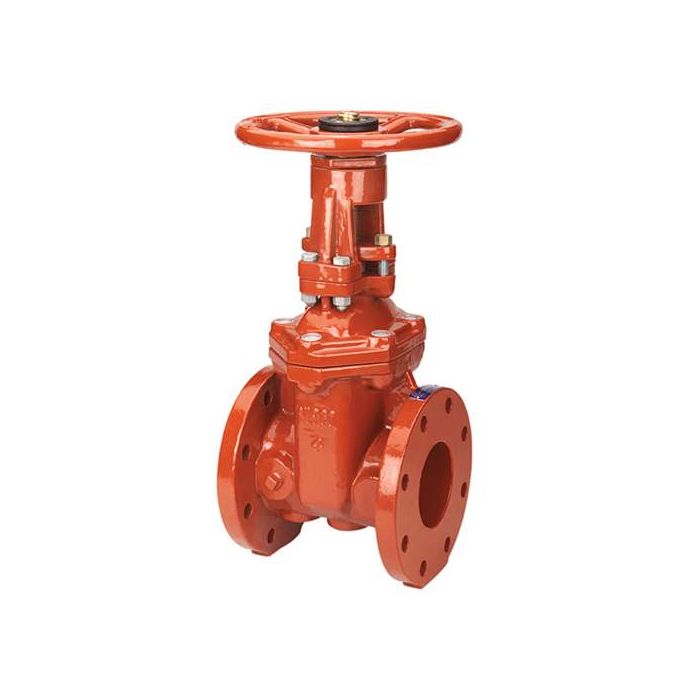

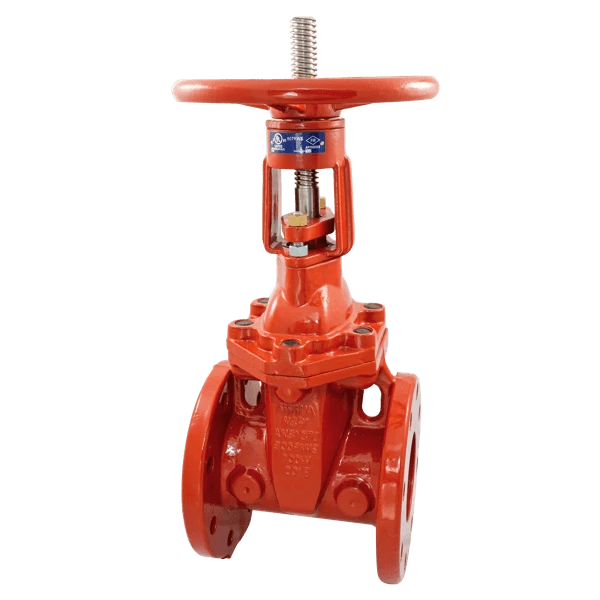

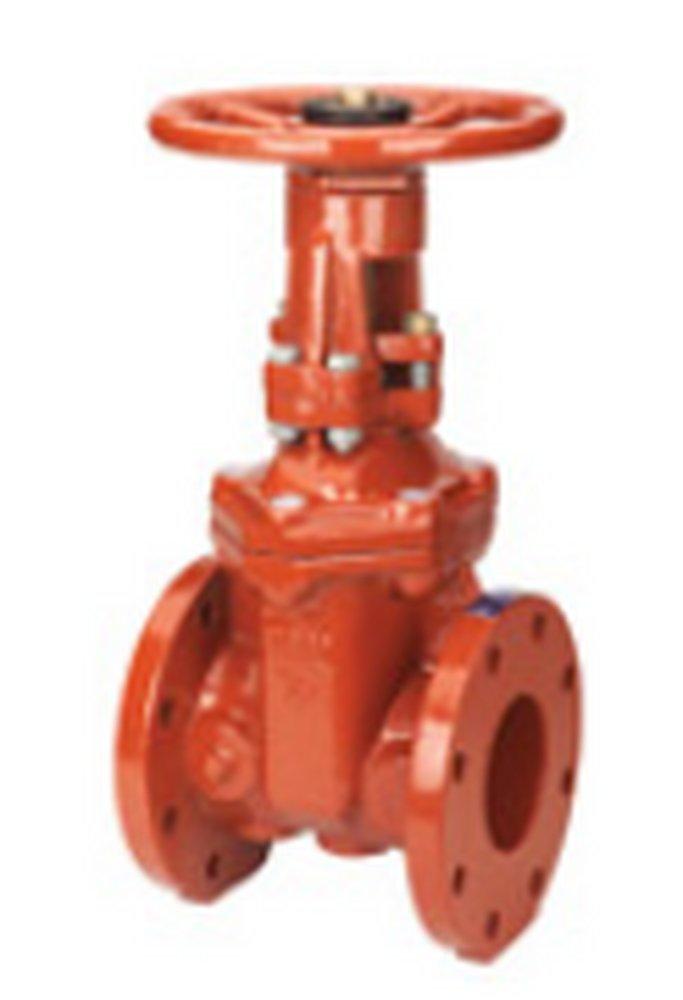

Nibco NS2920L F-607-RWS Gate Valve 8 inches Flanged

Product Description

The NIBCO NS2920L flanged, ductile iron, gate valve is designed to be the main control valve in an automatic fire sprinkler system. The resilient wedge, ductile iron gate valve features Class 125 flanged, flat face end connections for easy installation and accessibility. It provides full flow with minimal pressure drop.

• Designed to be the main control valve in an automatic fire sprinkler system
• Features Class 125 flanged, flat face end connections for easy installation and accessibility
• Provides full flow with minimal pressure drop

Product Highlights

The valve features a pre-grooved stem for tamper switch mounting and is drilled, tapped, and plugged at location "A" for bypass. It is listed by UL/ULC (UL262). Meets or exceeds performance requirements of AWWA C509 and C515 for 3 in and larger valves.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NS2920L
• Country of Origin: US

Technical Specifications

• Valve Size: 8"
• Connection Type: F -- Flanged
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Valve Body Material: Ductile Iron
• Stem Material: Stainless Steel 304
• Manufacturer: NIBCO
• Part Number: NS2920L
• Model: F-607-RWS
• Valve Type: Gate Valve
• Application: Fire Protection
• Connection: 8" Flanged
• Material: Ductile Iron
• Cold Working Pressure: 300 psi
• Bonnet Style: Bolted
• Trim Material: Stainless Steel
• Handle Style: Standard Handwheel
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 43.03"
• Width: 14.75"
• Height: 14.75"
