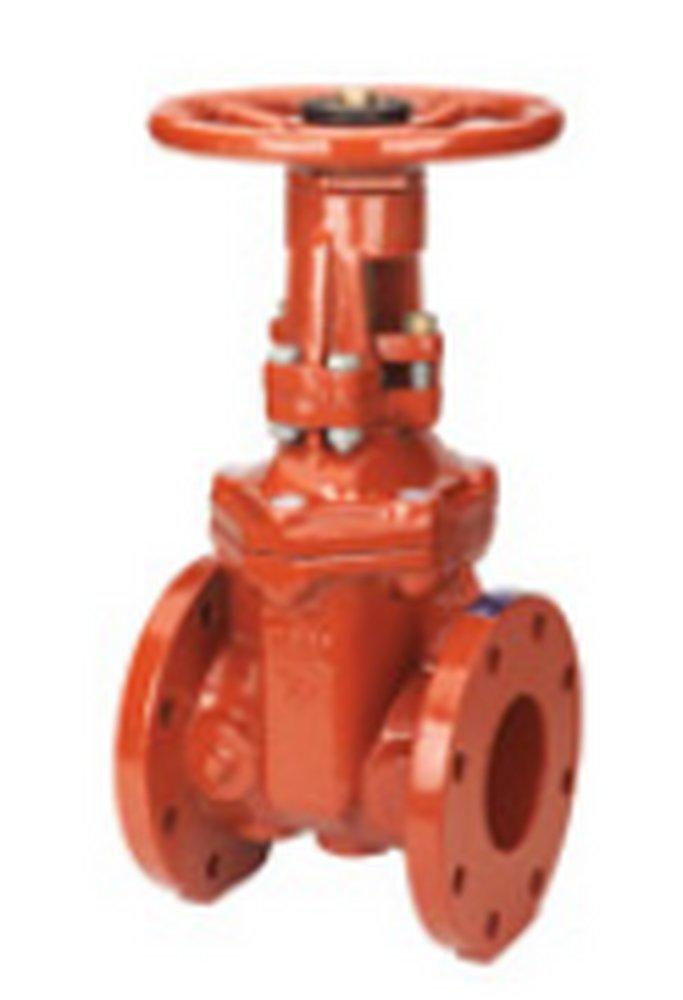

NIBCO NS2920K F-607-RWS 6 in. Flanged Ductile Iron OSY Resilient Wedge Gate Valve

Product Description

The NIBCO® Flow® Gate Valve, MPN NS2920K, is designed for reliable operation in fire protection systems. This resilient wedge gate valve is flanged and measures six inches nominal size. It operates under a pressure rating of three hundred psi and includes a handwheel actuator for easy use.

• Constructed from ductile iron with a bolted bonnet.
• Features an epoxy coating for durability and resistance.
• Suitable for fire protection applications, ensuring quick shutoff.

Product Highlights

This valve is NSF and FDA certified, meeting high safety standards.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 6 in
• Pressure Rating: 300 psi
• Body Material: Ductile Iron
• Trim Material: 304 Stainless Steel
• Actuator Type: Handwheel
• Inlet to Outlet Length: 10-1/2 in
• Top to Inlet Center: 29.3 in
• Softgoods Material: EPDM
• Hand Wheel Diameter: 12.4 in
