NIBCO NS2920H F-607-RWS 4 FL OSYRW SSSTM ULFMGT DI300

Product Description

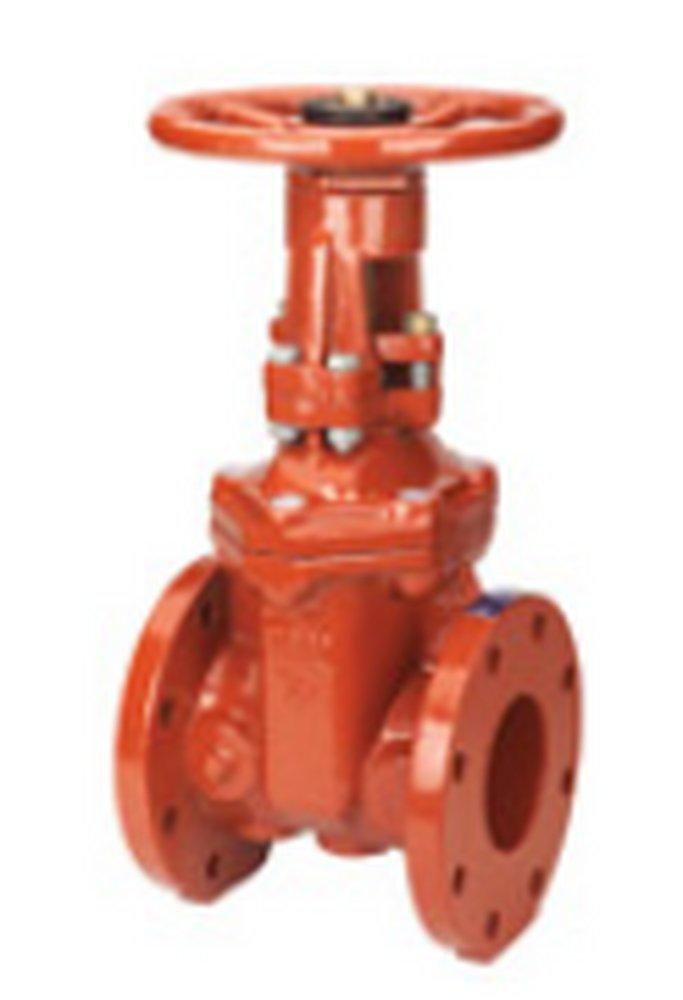

The NIBCO Flow Gate Valve, model NS2920H, is a four-inch flanged valve designed for handling air, gas, and water. It features a resilient wedge design and is suitable for various applications, including fire protection systems.

• Flanged and flat face design for easy installation
• 300 psi cold working pressure rating for reliable performance
• Epoxy coating for enhanced durability and corrosion resistance

Product Highlights

This valve is equipped with a handwheel actuator, allowing for easy operation. With a durable ductile iron body and stainless steel trim, it stands up to tough conditions.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Flat Face

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• Pressure Rating: 300 psi
• Nominal Size: 4 in
• End Style: Flanged
• Domestic/Import: Domestic
• Trim Material: 304 Stainless Steel
• Softgoods Material: EPDM
• Hand Wheel Diameter: 10.2 in
• Inlet to Outlet Length: 9 in
• Top to Inlet Center: 21 in
• Series: F-607-RWS
• Pressure Class: 125 lb
• Media: Air/Gas/Water
