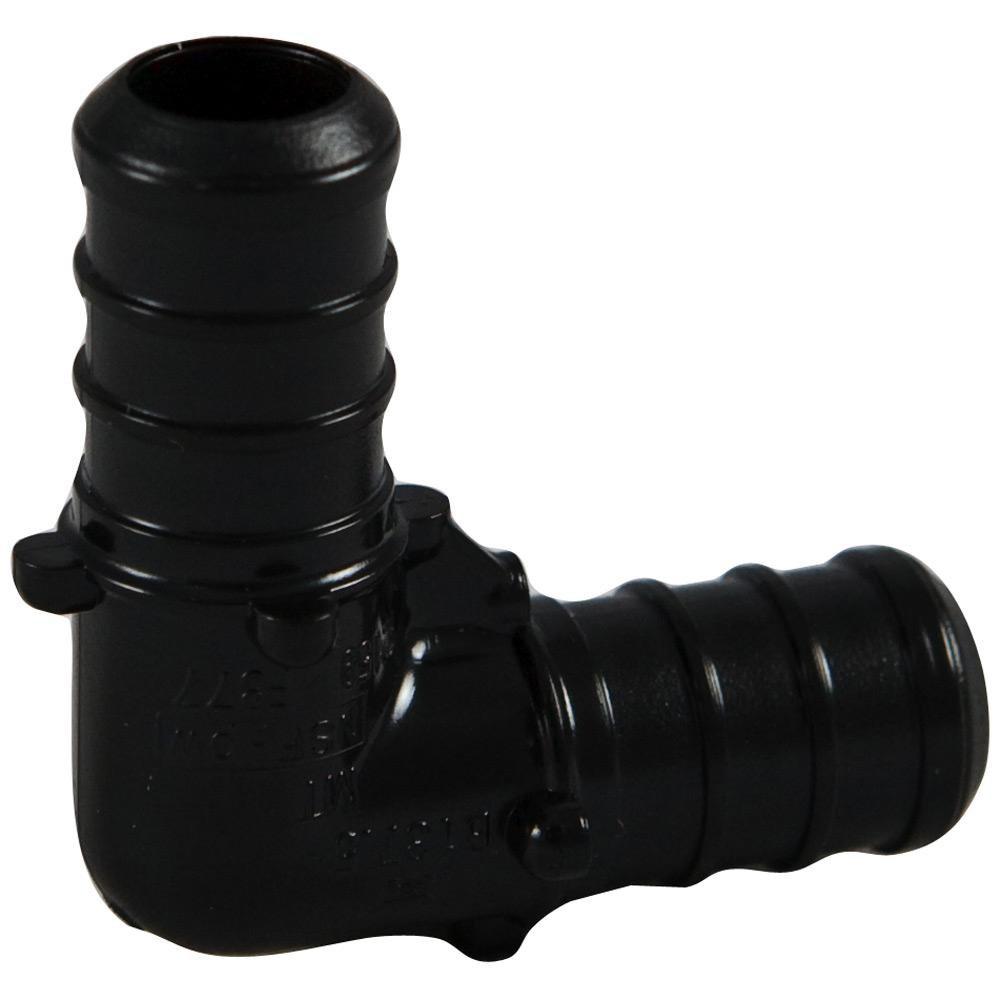

NIBCO NPD07-1/2 90 Degree Poly PEX Elbow

Product Description

The NIBCO PEX poly insert elbow, MPN NPD07-1/2, is suitable for potable water and radiant heating systems using NIBCO PEX tubing. Made from PPSU, this fitting features PEX end connections with a 90-degree bend to change the flow direction. It is compatible with copper crimp rings, copper sleeves, stainless steel sleeves, or stainless steel clamps for secure joining. Ideal for new construction, repairs, and remodeling.

• PEX x PEX end connections
• Meets ASTM F877 and ASTM F2159 standards
• Maximum service temperature of 200 degrees F

Product Highlights

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: PX00588C

Technical Specifications

• System Use: Heating, Residential Plumbing
• Basic Material: Polysulfone
• Type of Fitting: Elbow
• Fitting Bend Angle: 90 degrees
• End Connection Type: PEX x PEX
• Nominal Pipe Size: 1/2
• Length: 1.5 inches
• Width: 1.5 inches
• Height: 0.625 inches
• Potable Water Code: NSF/ANSI 372 compliant
• Maximum Temperature: 200 degrees
• NSF Certified: Yes
• UPC: 039923321008
