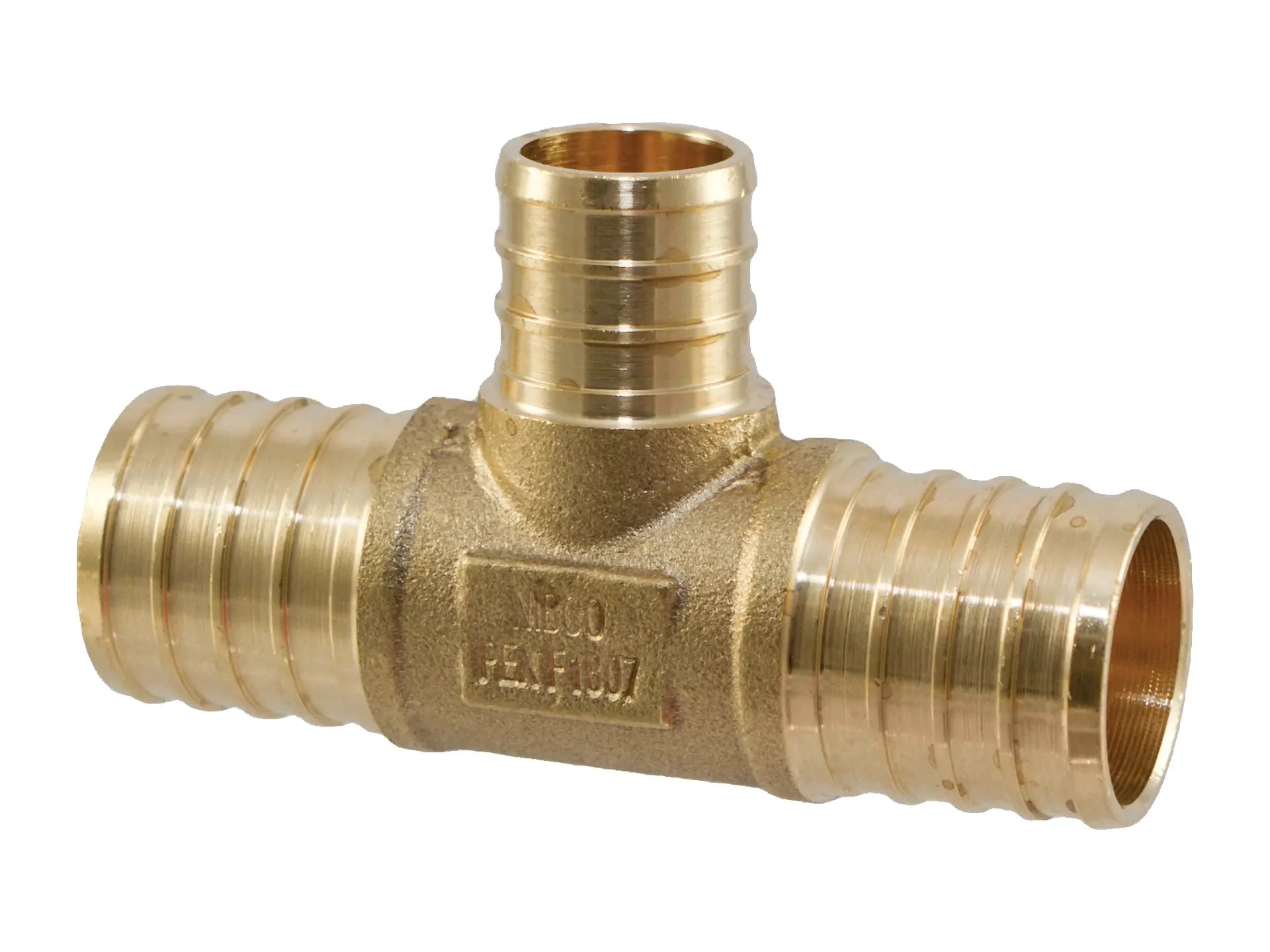

NIBCO NP11R-LF PEX Metal Insert Tee 1 inches x 1 inches x 3/4 inches PX80810A

Product Description

The NIBCO NP11R-LF PEX metal insert tee is suitable for use with NIBCO PEX in water and heating system applications. This insert tee has PEX end connections for continuous pipe connection and branching in different directions. NIBCO PEX fittings are simple to install and require no maintenance.

• Maximum service temperature: two hundred degrees Fahrenheit
• Lead-free and resistant to dezincification
• Meets ASTM F877 and ASTM F1807 standards

Product Highlights

Product Information

Standard Information

• Brand: NIBCO
• MPN: NP11R-LF

Technical Specifications

• Manufacturer: NIBCO
• Part Number: PX80810A
• Application(s): Lead-Free
• System Use: Lead-Free, Residential Plumbing, Heating
• Basic Material: Lead-Free Brass
• Type of Fitting: Tee
• Type of Tee: Reducing Outlet
• End Connection Type: PEX x PEX x PEX
• Nominal Pipe Size: 1 inches x 1 inches x 3/4 inches
• End Connection: PEX
• Old Material Number: NP11RLF1134
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 2.68 inches
• Width: 1.63 inches
• Height: 0.94 inches
• Figure Number: NP11R-LF
• Metal End Connection Type: PEX x PEX x PEX
