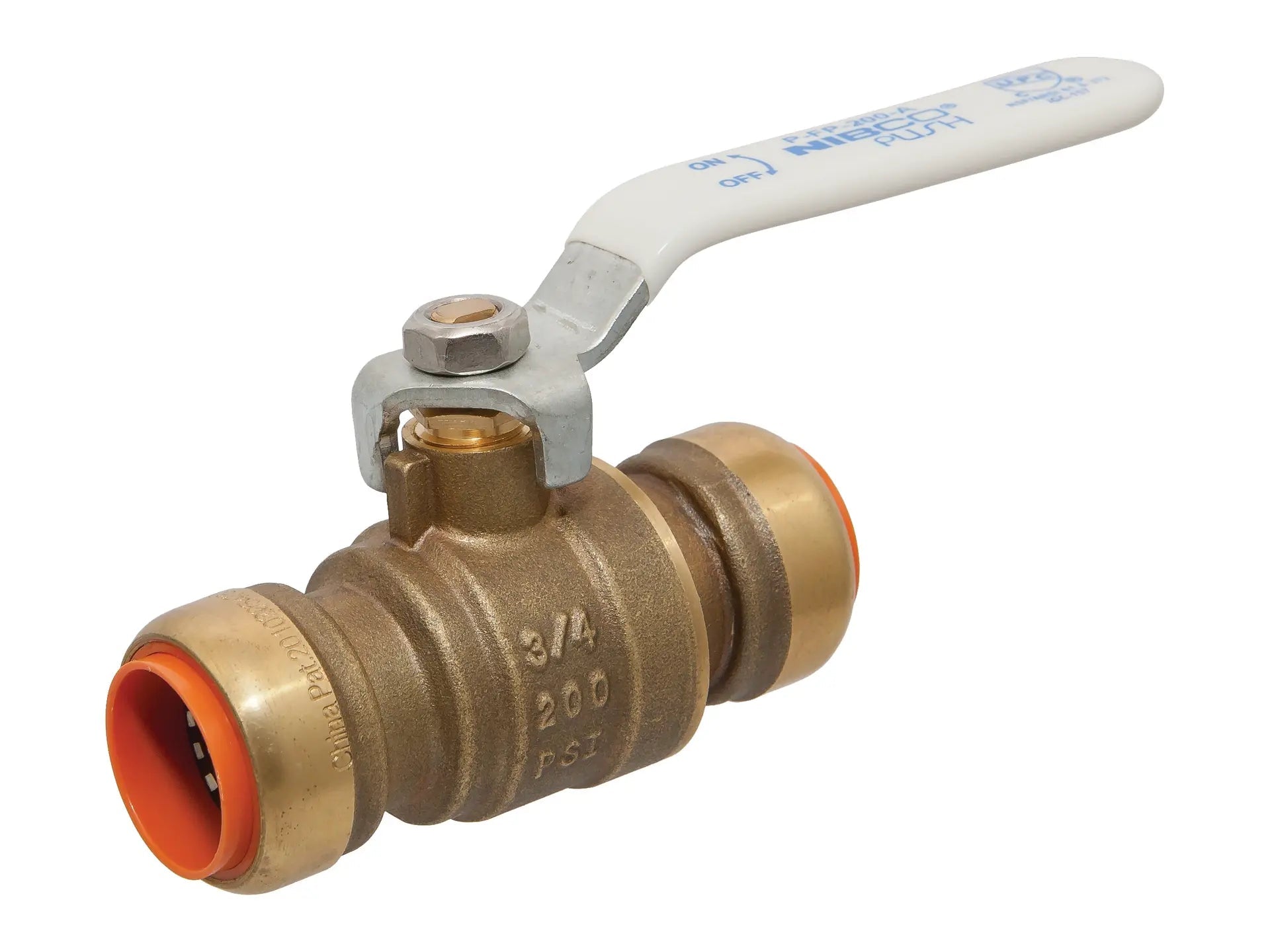

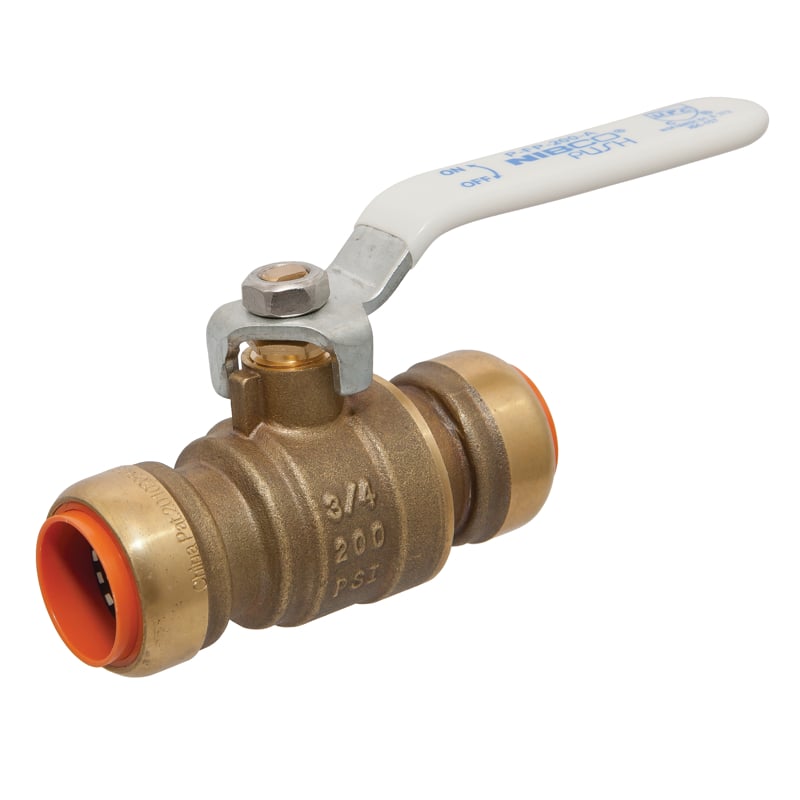

Nibco NN998H8W Ball Valve, Full Port, Push-On, 3/4 inches

Product Description

The NIBCO NN998H8W lead-free ball valve is for water, non-potable water, and hydronic systems. The ball valve features push-to-connect ends and a standard lever handle. It fits copper, CPVC-CTS, and PEX tubing, and provides a bubble-tight shutoff. The push-on valves are removable and reusable.

• Patented alloy resists dezincification
• Full port design
• Blowout-proof stem

Product Highlights

The NIBCO lead-free ball valve is for water, non-potable water, and hydronic systems. Features push-to-connect ends and a standard lever handle.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NN998H8W
• Country of Origin: CN

Technical Specifications

• Valve construction: Silicon Performance Bronze
• Seat: PTFE
• Ball: Silicon Performance Bronze
• Max psi rating: 200 psi
• Certifications: NSF 61, NSF 372, IGC-158
• Manufacturer: NIBCO
• Part Number: NN998H8W
• Model: PFP200A-LF
• Series: PFP-200A-LF
• Type of Valve: Ball
• Nominal Pipe Size: 3/4"
• End Connection Type: Push x Push
• Material: Lead-Free Brass
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: BRS - Brass Ball and Stem
• Turns Operations: Quarter-Turn
• Pressure Rating (psi): 200 psi rated pressure
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923394866
• Length: 5.5"
• Width: 2.5"
• Height: 1.5"
• Size: 3/4 in
• Connection Type: Push End
• Item: Valve
• Lead Free: Yes
• Maximum Operating Pressure: 200 PSI
• Maximum Working Temperature: 200 F
• Connection 2 Size: 3/4 in.
• Connection 2 Type: Push End
• Regulated: No
• Brand Name: Nibco
