Nibco NMF894K F739 6 FLG FIXED ORIFICE BALANCE VLV

Product Description

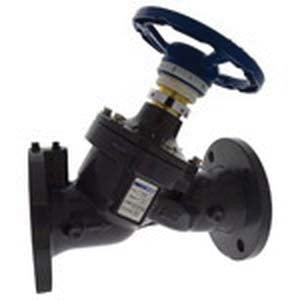

The NIBCO NMF894K is a circuit balancing valve designed for HVAC and mechanical systems. It features a manual/fixed orifice for effective flow control. This valve measures six inches and has flanged connections for easy installation.

• Rated at 230 psi non-shock cold working pressure
• Durable ductile iron body and bonnet
• Integral internal memory stop

Product Highlights

This valve is essential for balancing hot and chilled water systems.

Product Information

Standard Information

• Brand: NIBCO INC
• MPN: NMF894K

Technical Specifications

• Type: Manual/Fixed Orifice
• Series: F-739
• Nominal Size: 6 in
• Pressure Rating: 230 psi
• Flow Rate: 210 gpm
• Inlet to Outlet Length: 18.9 in
• Top to Inlet Center: 13.4 in
• Pressure Class: 150 lb
• Temperature Rating: 250 deg F
• Body Material: Ductile Iron
• Trim Material: Steel Stem/EPDM Coated Disc
• Softgoods Material: EPDM/PTFE
• Actuator Type: Handwheel
• Standards/Approval: ASTM A536, ASME/ANSI Class 150
