Nibco NMF894H F739 4 Flg Fixed Orifice Balance Vlv

Product Description

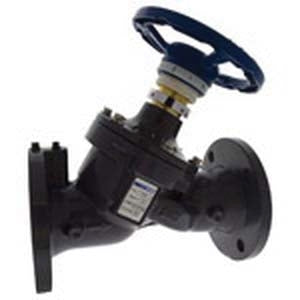

NIBCO NMF894H F739 is a circuit balancing valve with a manual fixed orifice. It is designed for efficient flow control in mechanical and HVAC systems. The valve has a nominal size of four inches and features ANSI Class 150 flanged connections.

• Durable ductile iron body
• Rated for 230 psi non-shock pressure
• Integral memory stop for easy settings restoration

Product Highlights

This valve is suitable for balancing HVAC hot and chilled water systems, allowing for precise flow measurement and adjustment. It incorporates integral pressure and temperature ports for quick readings, ensuring optimal performance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: F739

Technical Specifications

• Nominal Size: 4 inches
• Pressure Rating: 230 psi
• Flow Rate: 94 gpm at 0.145 psi minimum signal
• Temperature Rating: 250 degrees Fahrenheit
• Actuator Type: Handwheel
• Body Material: Ductile Iron
• Trim Material: Steel stem and ductile iron disc
• Inlet to Outlet Length: 13.8 inches
