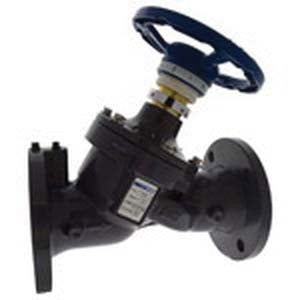

NIBCO NMF894F F739 3 FLG FIXED ORIFICE BALANCE VLV

Product Description

The NIBCO NMF894F is a manual fixed orifice balance valve designed for HVAC and plumbing systems. This valve is part of the F739 series, with a nominal size of three inches and flanged connections. It operates efficiently at a pressure rating of 230 psi and a maximum temperature of 250 degrees Fahrenheit. The valve allows for precise flow management in hot and chilled water systems.

• Rated for 230 psi non-shock cold working pressure
• Integral memory stop for maintaining flow settings
• 12.2 inches inlet to outlet length

Product Highlights

This balancing valve is constructed from durable ductile iron and features a handwheel actuator for easy operation. It includes integral pressure temperature ports for quick readings, and a PTFE and EPDM stem seal ensures long-lasting performance. NIBCO's F739 series is ideal for achieving accurate flow control in mechanical and HVAC applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923411938

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• End Style: Flanged
• Flow Rate: 51 gpm at 0.145 psi minimum signal
• Inlet to Outlet Length: 12.2 inches
• Nominal Size: 3 inches
• Pressure Class: 150 lb
• Pressure Rating: 230 psi
• Series: F-739
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 10.6 inches
• Trim Material: Steel Stem/Ductile Iron Disc
• Type: Manual/Fixed Orifice
