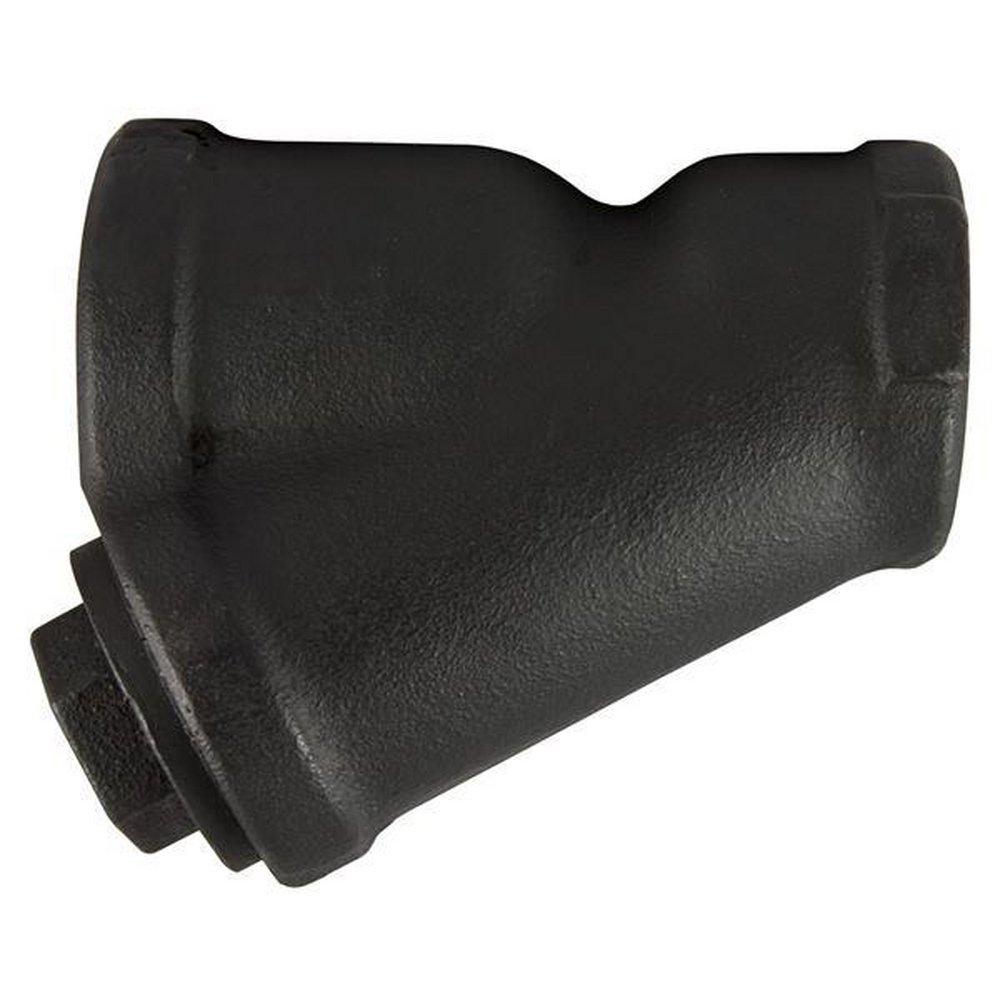

NIBCO NLT100D T-751-A Wye 2 in. Cast Iron FNPT 20 Mesh Valve Strainer

Product Description

The NIBCO NLT100D is a T-751-A Wye strainer designed for effective filtration in various industrial and commercial applications. This valve strainer features a two-inch nominal size, making it suitable for larger piping systems. Constructed from durable cast iron, it has a metal-filled graphite softgoods material for enhanced sealing and resistance to high temperature.

• 200 psi non-shock cold working pressure
• 20-mesh stainless steel wire screen for efficient filtration
• Meets ANSI B1.20.1 standards

Product Highlights

This strainer is ideal for protecting pipelines and equipment by filtering out debris.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NLT100D

Technical Specifications

• Nominal Size: 2 in
• Blow-Off Size: 1 in NPT
• Body Material: Cast Iron
• Overall Length: 7 in
• Connection Type: Thread
• Domestic/Import: Import
• Softgoods Material: Metal Filled Graphite
• Maximum Pressure: 125 psi saturated steam to 353 deg F
