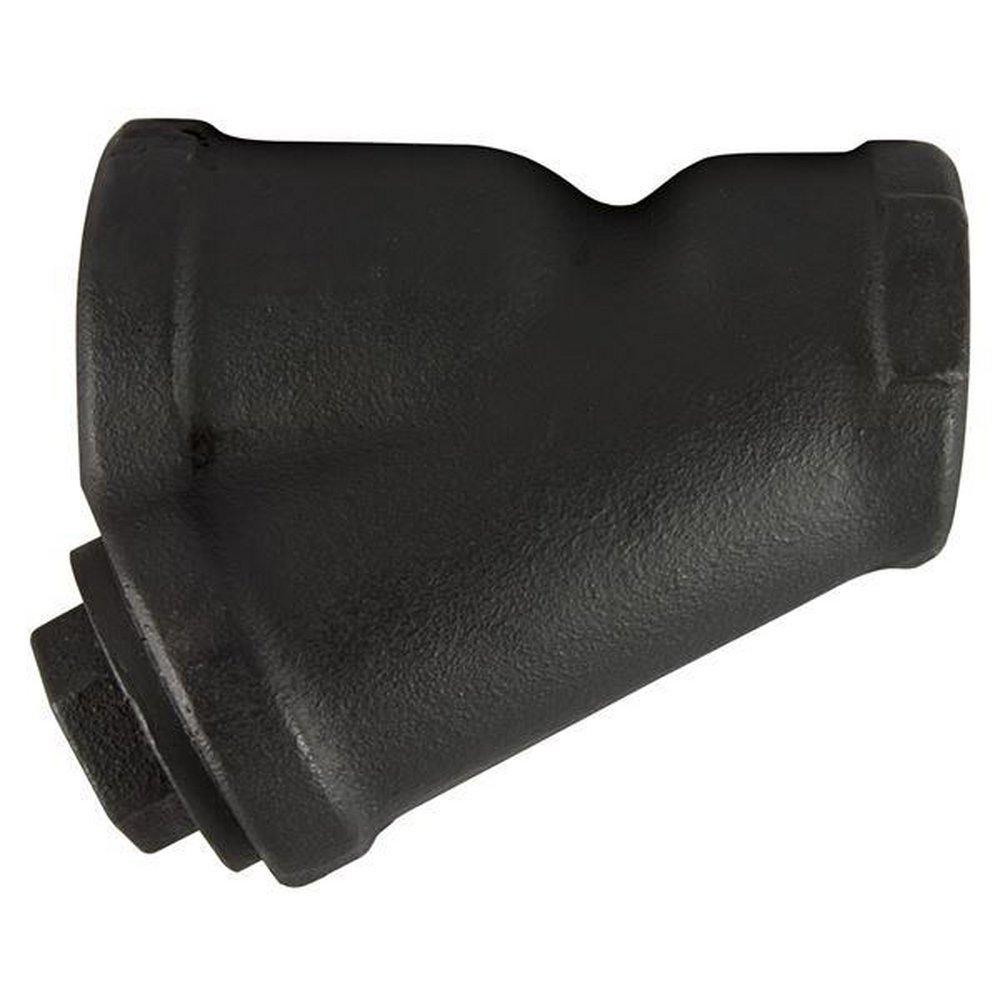

NIBCO NLT1006 T-751-A Wye 1/2 in. Cast Iron FNPT 20 Mesh Valve Strainer

Product Description

The NIBCO NLT1006 T-751-A Wye Strainer is designed for commercial, mechanical, and industrial applications. This valve strainer features a half-inch nominal size and is made from cast iron. It has a blow-off size of one-fourth inch NPT and includes a tapped cap with a plug. The strainer maintains a non-shock cold working pressure of 200 psi and a saturated steam pressure of 125 psi at a maximum temperature of three hundred fifty-three degrees Fahrenheit.

• Constructed from durable cast iron.
• 20-mesh stainless steel wire screen for effective filtration.
• Compatible with Class 250 threaded end connections.

Product Highlights

This strainer is dezincification resistant and conforms to ANSI B1.20.1 standards, making it a reliable choice for filtering out debris and ensuring system efficiency.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NLT1006

Technical Specifications

• Nominal Size: 1/2 in
• Blow-Off Size: 1/4 in NPT
• Body Material: Cast Iron
• Connection Type: Thread
• Domestic/Import: Import
• Series: T-751-A
• Softgoods Material: Metal Filled Graphite
