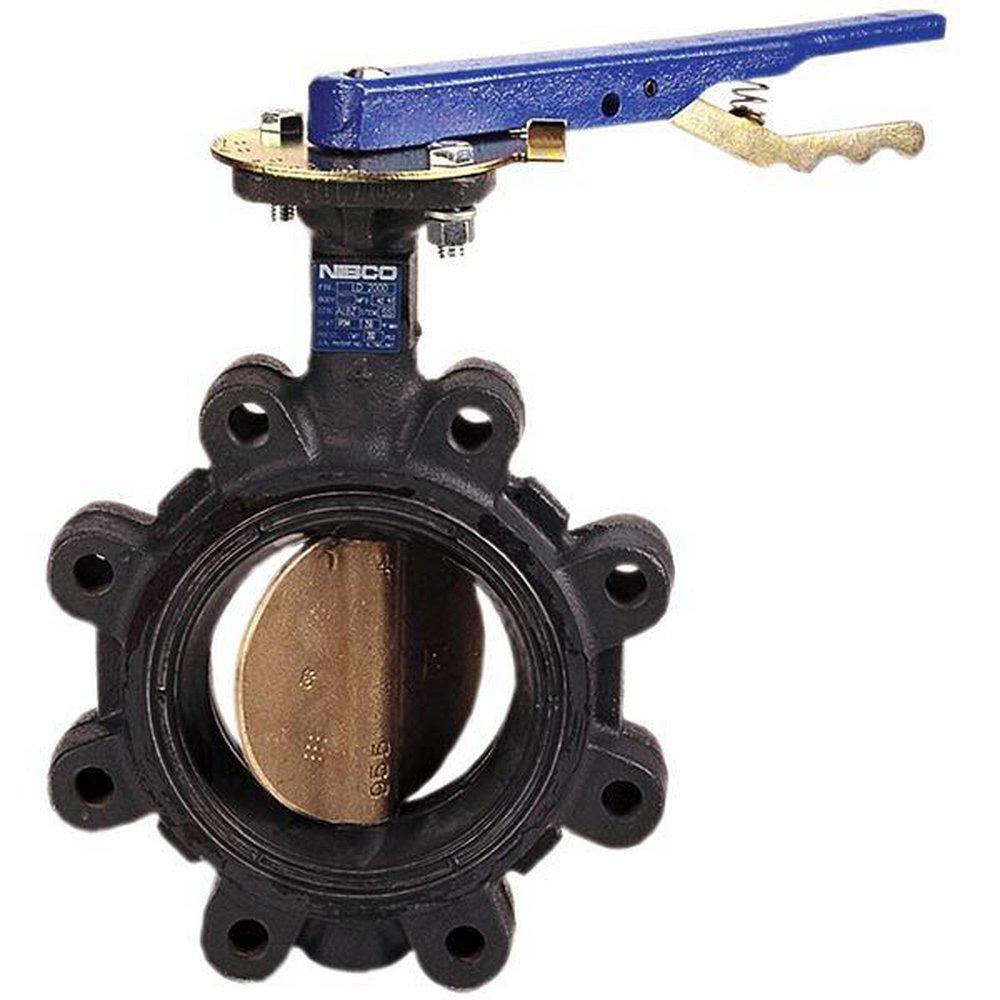

NIBCO NLQ100K LC-2000 Series 6 in Butterfly Valve

Product Description

The NIBCO NLQ100K is a cast iron butterfly valve designed for a range of industrial applications. It features a lug style design and a nominal size of six inches, making it suitable for commercial and light industrial uses. This valve is designed for 125/150 lb pressure rating and can handle continuous temperatures up to two hundred twenty-five degrees Fahrenheit. The valve utilizes an EPDM molded-in seat liner along with an aluminum bronze disc, providing reliable performance in water media applications. The lever lock handle actuator allows for easy operation with a quarter-turn feature, enhancing usability in tight spaces.

• 200 psi valve pressure rating
• EPDM molded-in seat liner
• Extended neck for insulation up to two inches

Product Highlights

This valve is ideal for HVAC systems and various industrial processes, ensuring a tight shut-off during operation.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: LC-2000

Technical Specifications

• Actuator Type: Lever-Lock Handle
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Pressure Class: 125/150 lb
• Temperature Rating: 225 deg F Continuous / 250 deg F Intermittent
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel
• Nominal Size: 6 in
