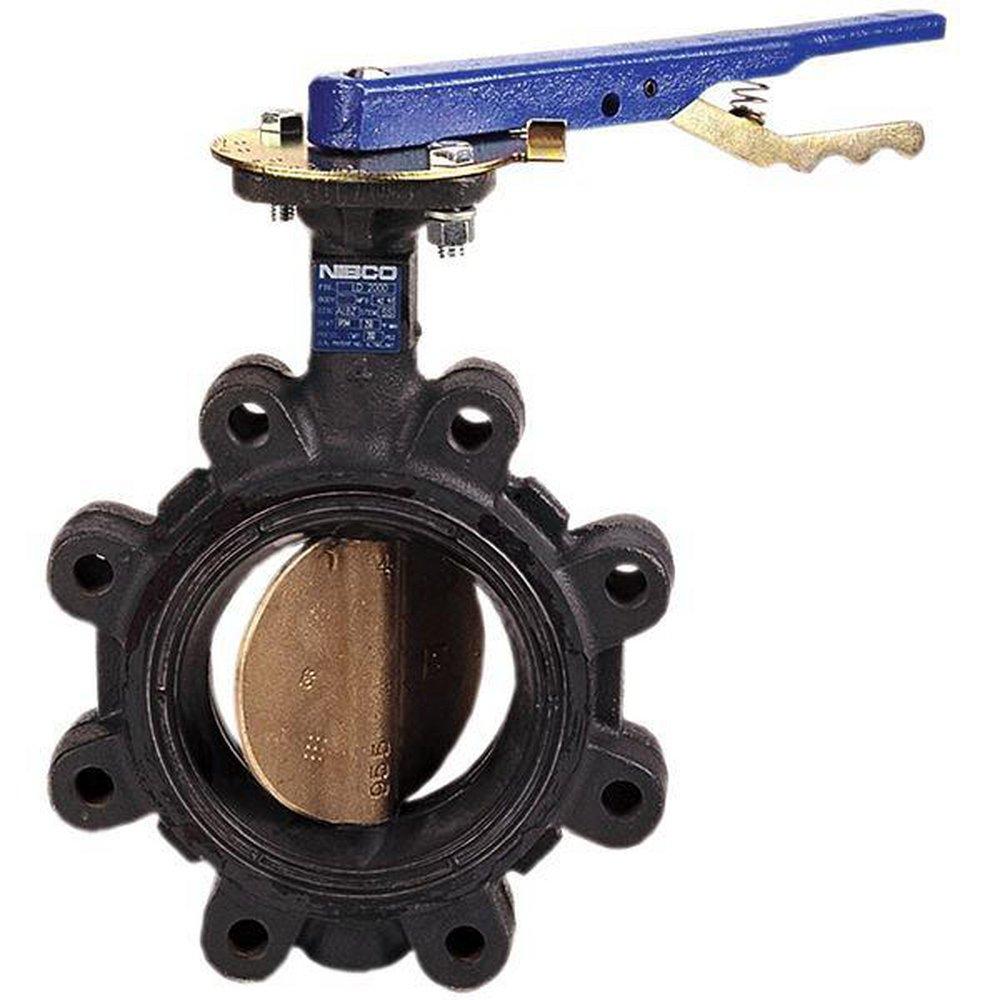

NIBCO NLQ100F LC-2000 Lug Style Butterfly Valve 3 in

Product Description

The NIBCO NLQ100F is a cast iron butterfly valve designed for reliable performance. This valve features a lug style design which allows for bi-directional dead-end service without needing a downstream flange. It provides a complete shut-off at two hundred psi.

• Preferred for HVAC and light industrial applications.
• Quarter-turn operation for ease of use.
• Extended neck allows for insulation up to two inches.

Product Highlights

Recommended for water applications and ideal for commercial use, the NIBCO NLQ100F provides excellent ease of use and functionality.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: LC-2000

Technical Specifications

• Nominal Size: 3 in
• Pressure Rating: 200 psi
• Actuator Type: Lever-Lock Handle
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Softgoods Material: EPDM
• Stem Material: 416 Stainless Steel
• Temperature Rating: 225 deg F Continuous / 250 deg F Intermittent
