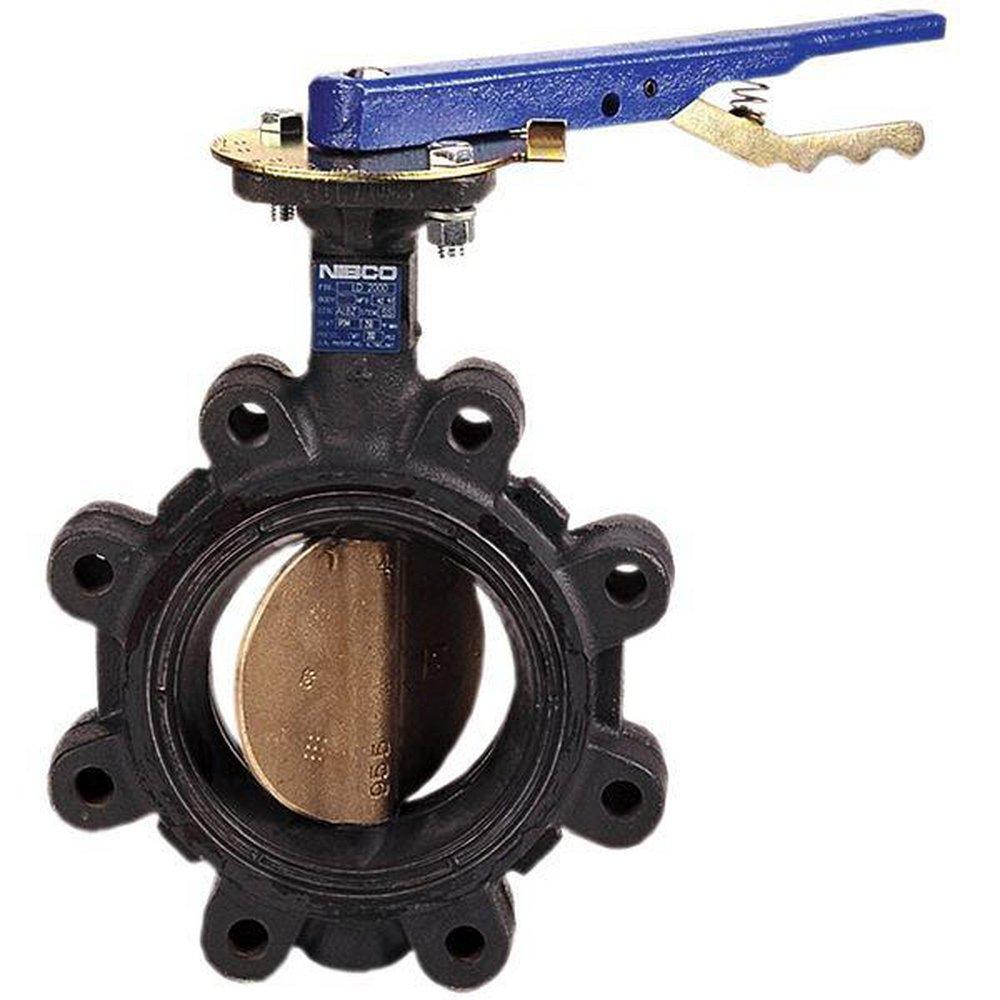

NIBCO NLQ100E LC-2000 Series 2-1/2 in Cast Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO cast iron butterfly valve, model NLQ100E, is designed for reliable service. With a nominal size of 2-1/2 inches, it features a lever lock handle actuator and is made of cast iron with aluminum bronze disc and EPDM softgoods. This valve operates with ease using a quarter-turn mechanism which makes it suitable for various applications, including HVAC systems and potable water services.

• Pressure rating of 200 psi
• Extended neck allows for insulation up to two inches
• Geometric drive design minimizes leak paths

Product Highlights

The NIBCO NLQ100E butterfly valve is engineered for bi-directional dead-end service without needing a downstream flange. It provides efficient flow control for commercial and light industrial processes.

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: NLQ100E

Technical Specifications

• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Stem Material: 416 Stainless Steel
• Softgoods Material: EPDM
• Pressure Class: 125/150 lb
• Nominal Size: 2-1/2 in
• Temperature Rating: 225 deg F Continuous / 250 deg F Intermittent
• Actuator Type: Lever-Lock Handle
• Series: LC-2000
