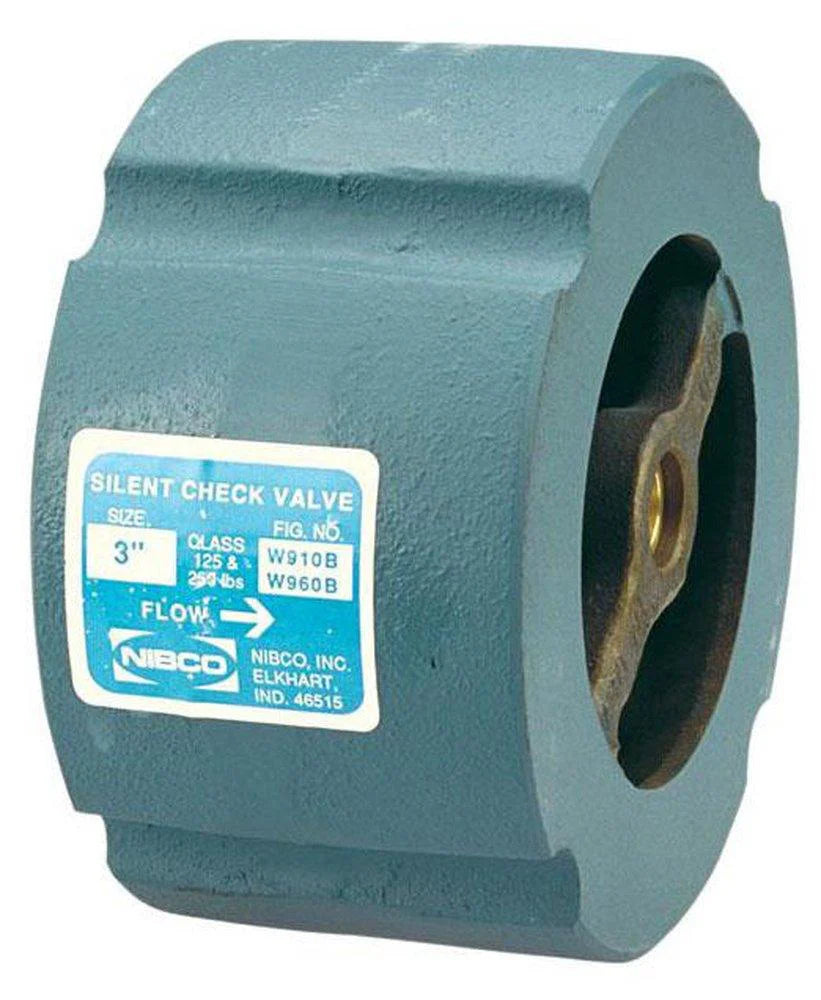

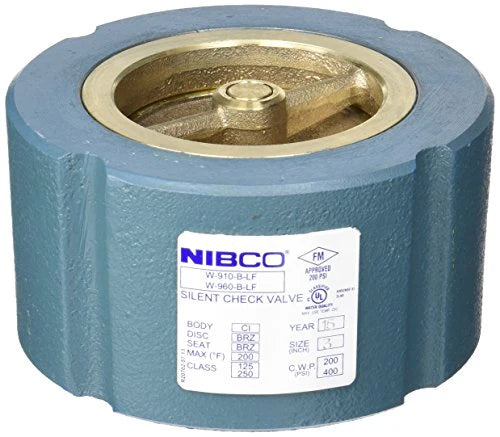

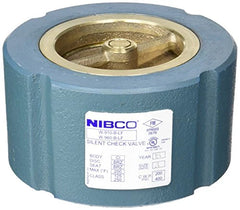

NIBCO NLN10XF W-910-B-LF 3 in. Cast Iron Wafer Check Valve

Product Description

The NIBCO NLN10XF is a three-inch cast iron wafer check valve built for reliable performance in commercial and industrial applications. It features a renewable bronze seat and disc, providing durability and resistance to wear. This valve operates effectively under high pressure conditions, making it suitable for various fluid systems.

• Spring actuated design for efficient opening and closing
• Lead-free construction for safety in water applications
• Compact wafer style for easy installation between flanges

Product Highlights

This valve is designed for low noise operation with a spring return mechanism, ensuring quiet functionality. The NIBCO NLN10XF is not approved for U.S. drinking water applications post-January 3, 2014, making it essential for users to verify compliance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Material: Cast Iron

Technical Specifications

• Nominal Size: 3 in
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Trim Material: Bronze
• Body Type: Wafer Style
• Actuator Type: Spring
• Compliance Standards: MSS SP-125, NSF/ANSI 61
