Nibco NLN10XF Check Valve 3 Inch

Product Description

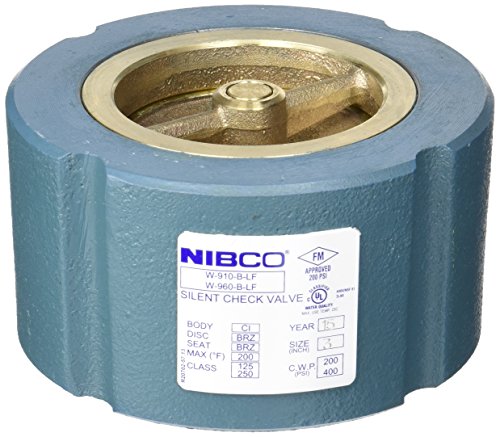

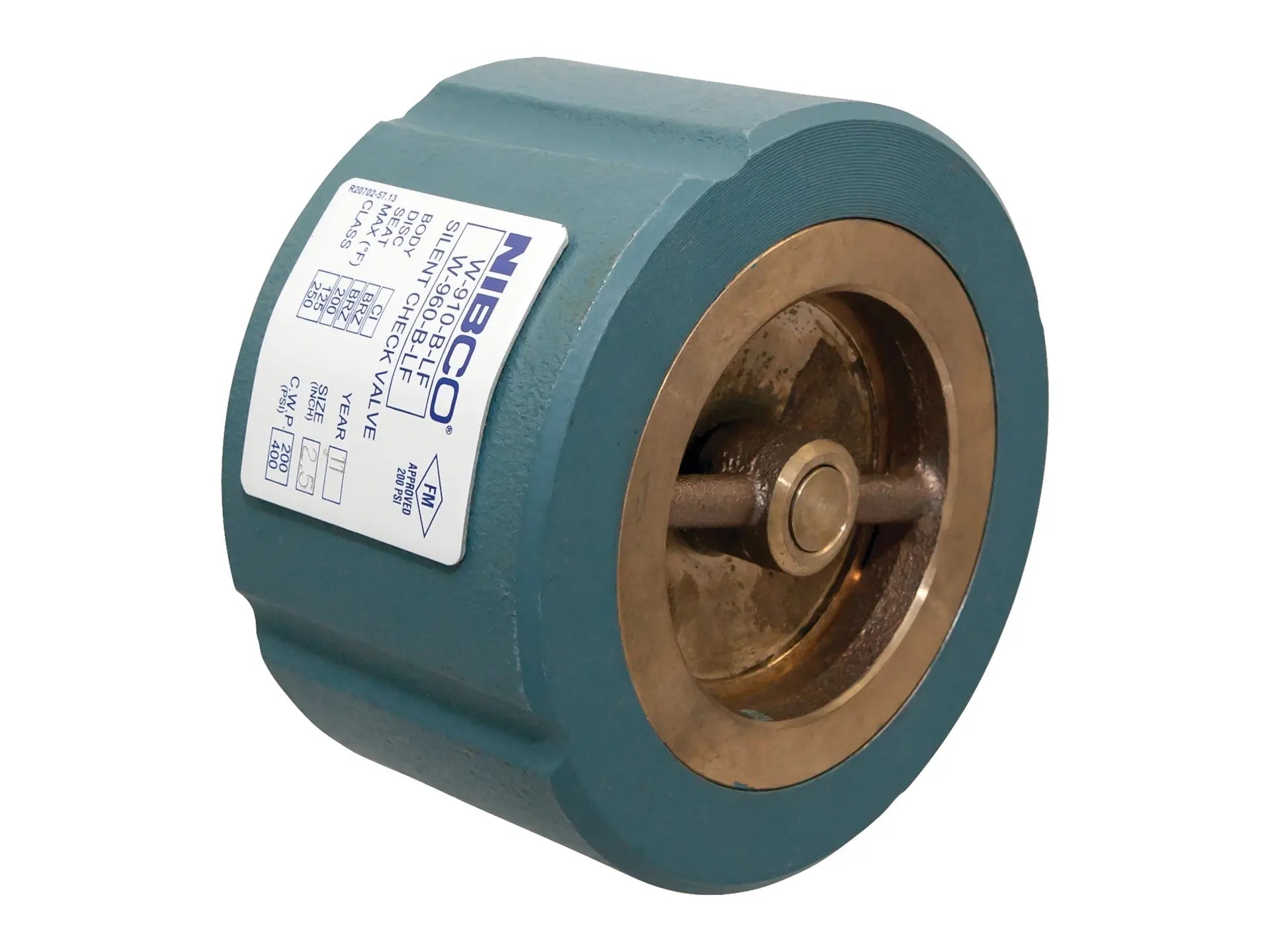

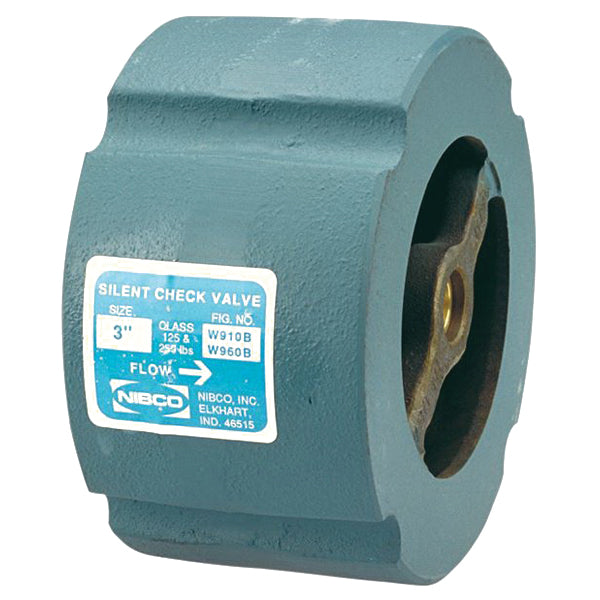

The NIBCO NLN10XF check valve is a horizontal/vertical, spring actuated, silent, wafer type valve. It features a cast iron body and bronze alloy disc and seat. Designed for commercial and industrial applications, it meets standards such as NSF/ANSI 61/372 and MSS SP-125. The valve has a temperature rating of 200 Deg F and a pressure rating of Class 125, 200 PSI CWP (Non-Shock).

• The Spring Return Reduces Noise for Quiet Operation
• Check Valves Prevent Backflow by Automatically Closing when Fluid Reverses Direction
• Versatile and Economical Valve

Product Highlights

This NIBCO check valve is ideal for preventing backflow in commercial and industrial settings. Its spring return design ensures quiet operation and reliable performance.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLN10XF
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: NSF/ANSI 61/372, MSS SP-125, ISO 9001, FM, UL (Canada and US)
• Application: Commercial, Industrial
• Body Material: ASTM A126 Class B Cast Iron
• Disc Material: ASTM B584 C87600 Bronze Alloy
• End To End Distance: 3.13 Inch
• Inclusions/Features: Renewable Seat and Disc
• Nominal Size: 3 Inch
• Pressure Rating: Class 125, 200 PSI CWP (Non-Shock)
• Product Sub-Type: Check Valve
• Product Type: Pipes/Valves/Fittings
• Seat Material: ASTM B584 C87600 Bronze Alloy
• Series/Model: W-910-B-LF
• Spring Material: ASTM A313 316 Stainless Steel
• Temperature Rating: 200 Deg F
• Type: Horizontal/Vertical, Spring Actuated, Silent, Wafer
• Model / MPN: NLN10XF
• Manufacturer: NIBCO INC.
• Connection Size: 3 in
• Connection Type: Wafer
• Flow Co-Efficient: 130 Cv
• Item Name: In-Line Silent Check Valve
• Material Specifications: ASTM 126 Class B, ASTM B584, C87600, ASTM A313, UNS S31600, ASTM B505, C95400
• Material: Cast Iron
• Model: W-910-B-LF
• Operator Type: Stainless Steel Spring Actuated
• Seat Seal Material: Bronze
• Turns Operations: Non-Manual
• Actuator Type: Spring
• End Style: Wafer
• Pressure Class: 125 lb
• Softgoods Material: Buna-N
• Trim Material: Bronze
• Valve Size: 3
• Cv Coefficient: 130
• eClass Classification: Inline Lead-Free* Iron Check Valves
• Part Number: NLN10XF
• Type of Valve: Check
• Series: W-910-B-LF
• Type of Check Valve: Inline
