Nibco NLK680J GD-4765 Butterfly Valve 5 Inch

Product Description

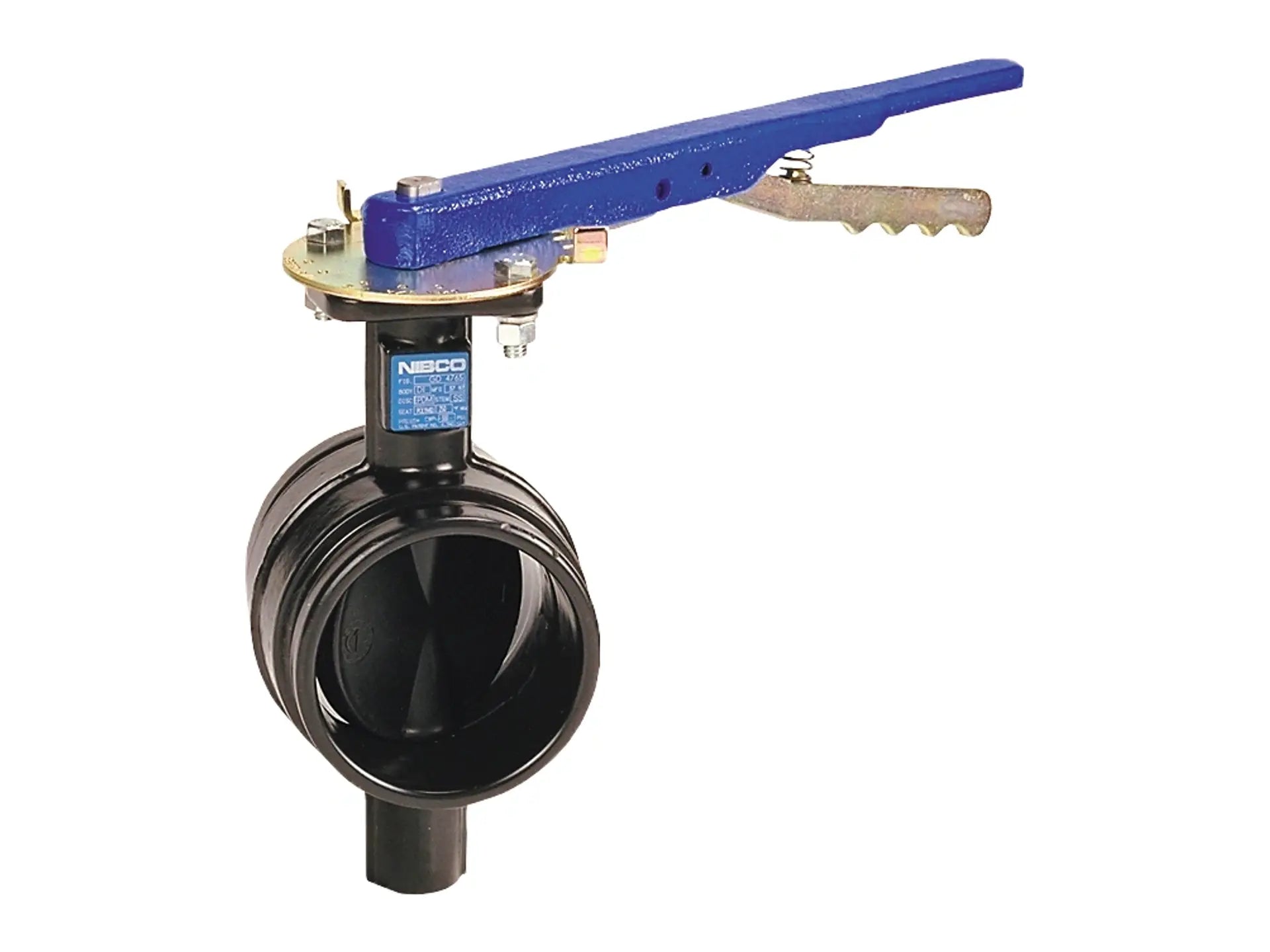

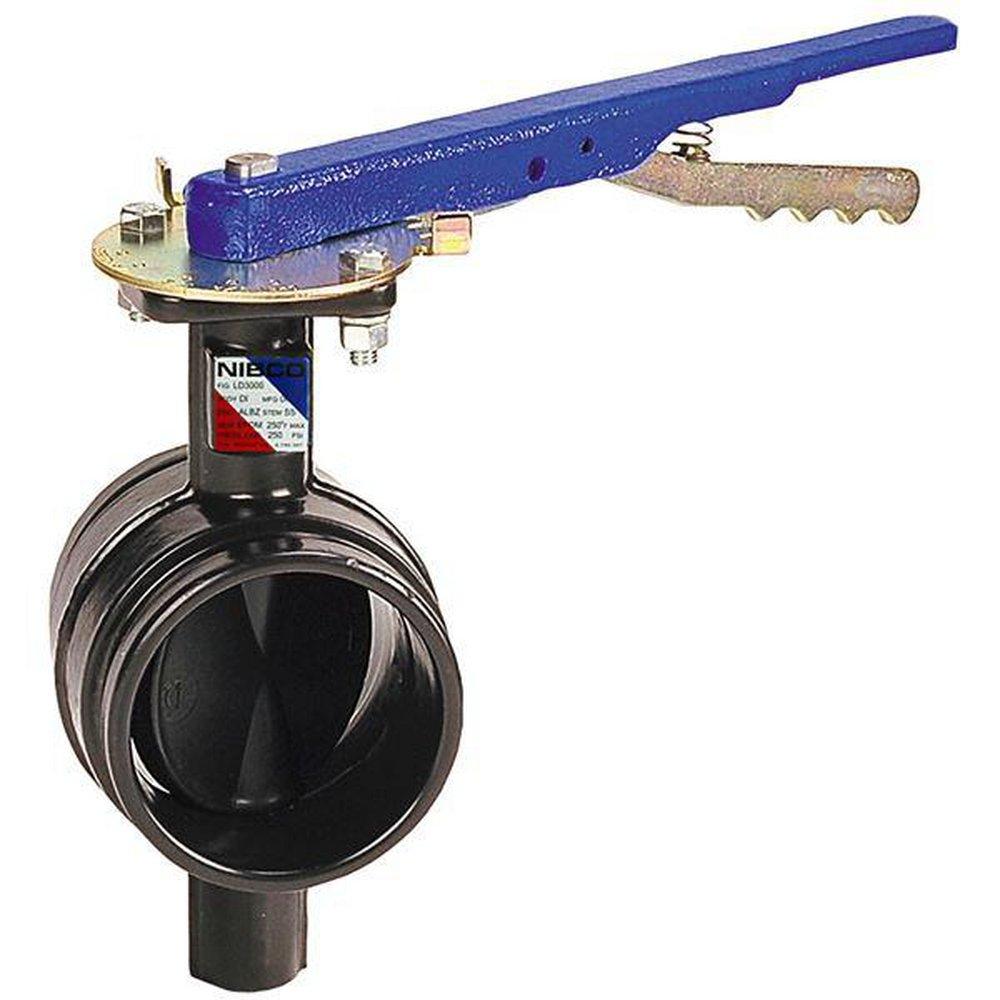

The NIBCO NLK680J ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve features an EPDM encapsulated ductile iron disc. The internal stem/disc splined drive design eliminates the need for pins or bolts. An extended neck allows for insulation up to 2 inches.

• Locking Lever Handle
• EPDM encapsulated ductile iron disc
• Polyamide Coated Body

Product Highlights

This NIBCO butterfly valve is versatile and economical for commercial, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLK680J
• Country of Origin: Domestic

Technical Specifications

• Brand: NIBCO
• Material: Ductile Iron, EPDM
• Manufacturer: NIBCO INC.
• Part ID / MPN: NLK680J
• Product Type: VALVE
• Size: 5 Inch
• UPC Code: 039923767264
• Type: Butterfly Valve
• Connection Type: Grooved
• Seat Material: Polymid
• Valve Size: 5"
• Disc Material: EPDM Coated Ductile Iron
• Valve Operator: Lever-Lock Handle
• Description: GD47653 5 GRV BFV L/LK HNDL DUCT IRON
• eClass Classification: Ductile Iron Butterfly Valves
• All Type of Item: Valve
• Turns/Operation: Quarter-Turn
• Actuator Type: Locking Lever
• Body Material: Ductile Iron
• Domestic/Import: Domestic
• End Style: Grooved
• Inlet to Outlet Length: 5.86 in
• Media: Water
• Nominal Size: 5 in
• Series: GD-4765-3
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel (Stem)
• Temperature Rating: 200 deg F
• Part Number: NLK680J
• Model: GD-4765-3
• Connection: 5" Grooved
• Material Specification: ASTM A-53
• Maximum Pressure: 300 psi
• Handle Style: Locking Lever
• Stem Material: Stainless Steel
• Connection Size: 5"
• Disc Finish: EPDM Coated
• Valve Type: Butterfly Valve
• Operator Type: Lever Lock Handle
• Material Standard: ASTM A395
• Finish/Color: Polyamide Coated
• Width: 5.86 IN
• Height: 5.56 IN
• Additional Specifications: Turns/Operation: Quarter-Turn, Disc Material: EPDM-Coated Ductile Iron
