Product Description

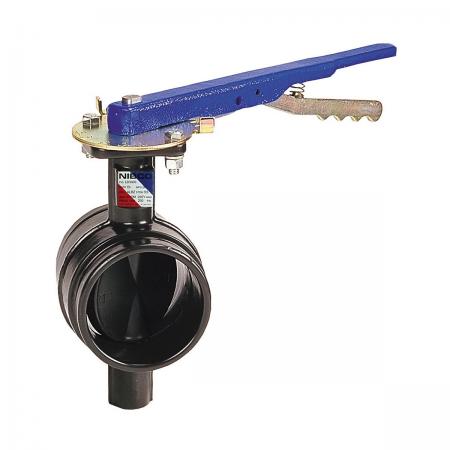

The NIBCO NLK680H GD-4765 Series 4-inch Ductile Iron EPDM Locking Lever Handle Butterfly Valve provides precise flow control and is suitable for commercial HVAC and water utility services. Manufactured by a trusted industry leader, this valve ensures durability and resistance to wear.
- Designed for easy installation with a grooved mechanical end connection.
- Features an EPDM encapsulated ductile iron disc and a stainless steel stem.
- Extended neck for insulation, supporting up to two inches for enhanced operational efficiency.
Product Highlights
This valve is notable for its 300 psi pressure rating suitable for sizes 2 to 10 inches and 200 psi for 12 inches. It is equipped with a unique locking lever handle facilitating secure and infinite position adjustments.
Product Information
Standard Information
-
Actuator Type: Locking Handle
-
Body Material: Ductile Iron
Technical Specifications
-
Dimensions: 5.03 in Dia
-
Disc Material: Ductile Iron
-
Stem & Pin Material: 416 Stainless Steel
-
Temperature Rating: 200 degrees Fahrenheit
-
Media: Water
-
Series: GD-4765-3
-
End Style: Grooved
