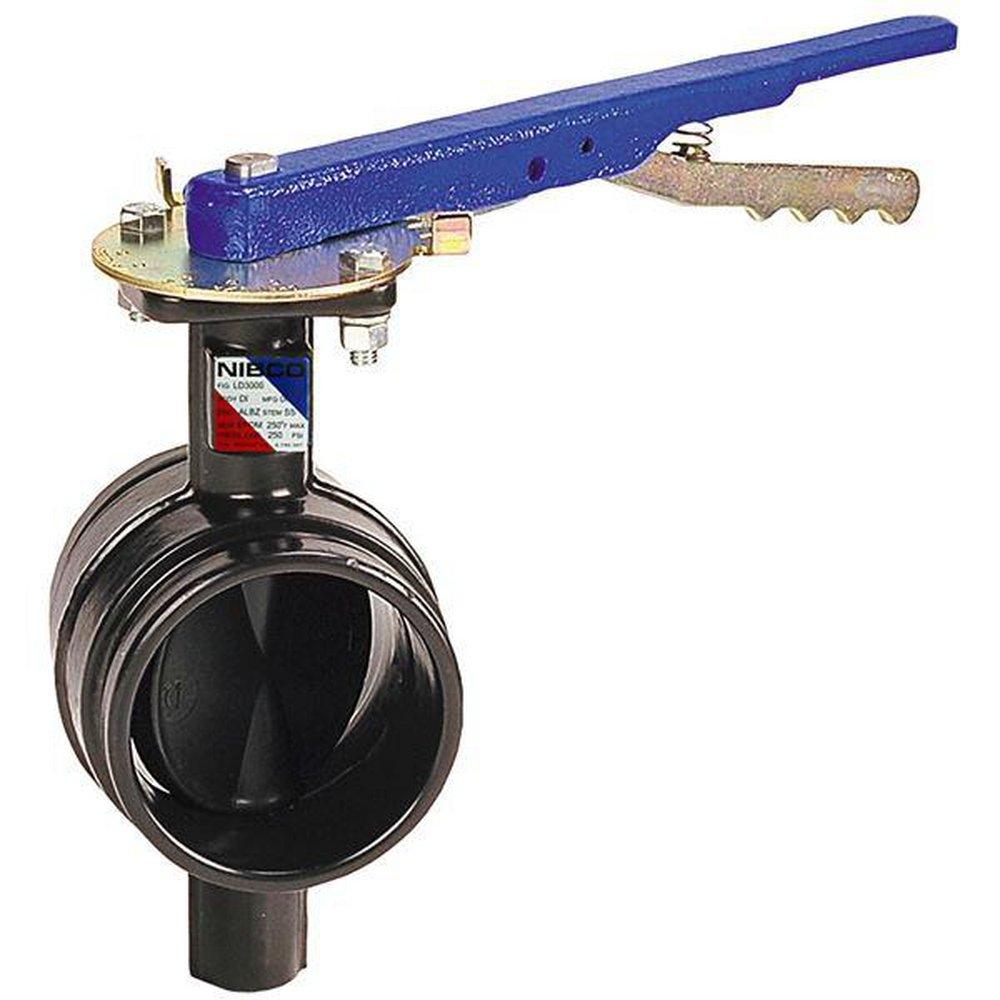

NIBCO NLK680F GD-4765 Series 3 in. Ductile Iron EPDM Locking Lever Handle Butterfly Valve NGD47653M

Product Description

The NIBCO NLK680F is a butterfly valve designed for effective flow control in various applications. Constructed from ductile iron, this valve features a locking lever actuator and EPDM encapsulated disc. It is suitable for commercial and light industrial use where water is the media. The valve has a nominal size of three inches and offers reliable performance in HVAC systems and potable water applications.

• Locking lever actuator for secure operation
• Maximum temperature rating of two hundred degrees Fahrenheit
• Extended neck for insulation purposes

Product Highlights

This butterfly valve's design allows for efficient flow regulation in both hot and cold conditions.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NLK680F

Technical Specifications

• Actuator Type: Locking Lever
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Nominal Size: Three inches
• End Style: Grooved
• Inlet to Outlet Length: Three point eighty-five inches
• Media: Water
• Temperature Rating: Two hundred degrees Fahrenheit
• Valve Pressure Rating: Three hundred psi
