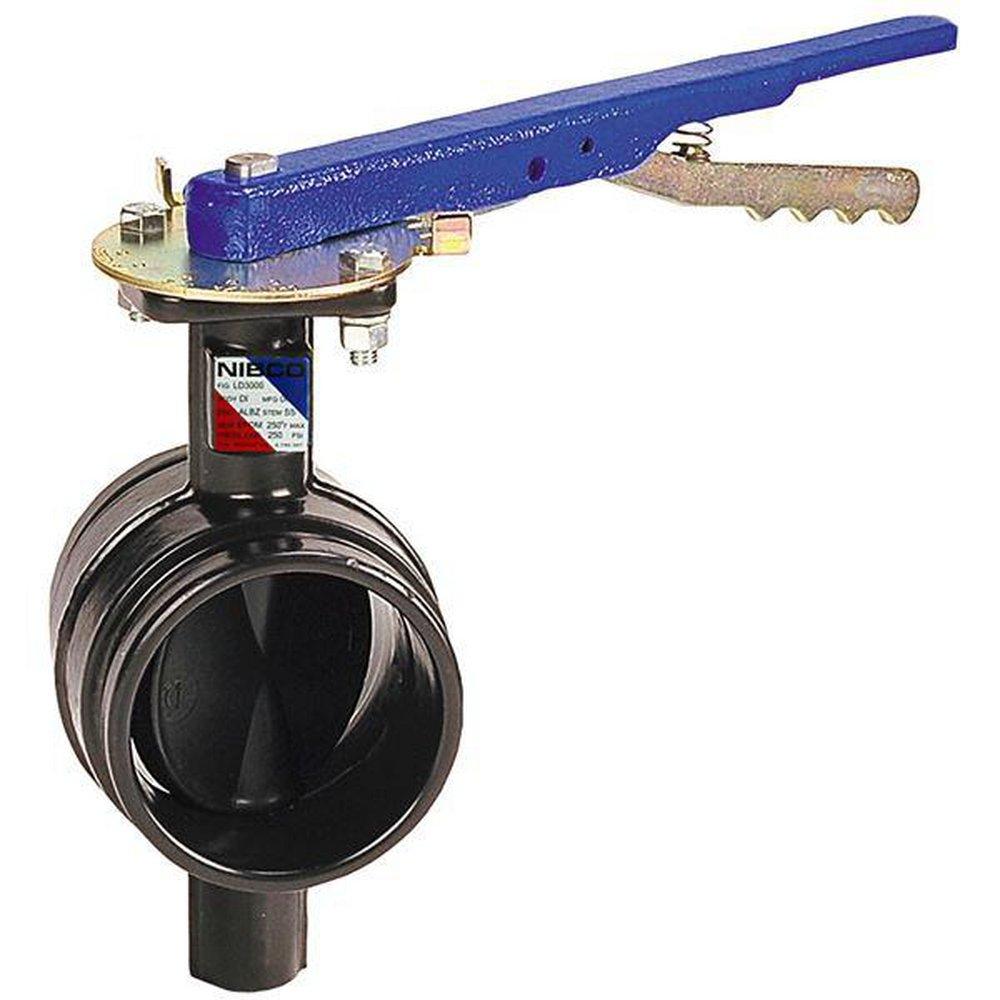

NIBCO NLK680D GD-4765 Series 2 in Ductile Iron EPDM Locking Lever Handle Butterfly Valve NGD47653K

Product Description

The NIBCO NLK680D is a 2 inch ductile iron EPDM locking lever handle butterfly valve designed for effective control in several applications. It features a locking lever actuator allowing for precise operations and is suited for water media. This valve meets rigorous standards for durability and safety.

• Locking lever actuator for precise control
• Rated for a maximum temperature of 200 degrees Fahrenheit
• Ductile iron body for strength and resilience

Product Highlights

The NIBCO NLK680D butterfly valve is ideal for commercial and light industrial applications, particularly in HVAC systems and potable water handling.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: GD-4765-3

Technical Specifications

• Actuator Type: Locking Lever
• Body Material: Ductile Iron
• Disc Material: Ductile Iron
• Domestic/Import: Domestic
• End Style: Grooved
• Inlet to Outlet Length: 3.33 inches
• Media: Water
• Nominal Size: 2 inches
• Softgoods Material: EPDM
• Temperature Rating: 200 degrees Fahrenheit
• Stem & Pin Material: 416 Stainless Steel (Stem)
• Valve Pressure Rating: 300 psi
• Not recommended for steam service
