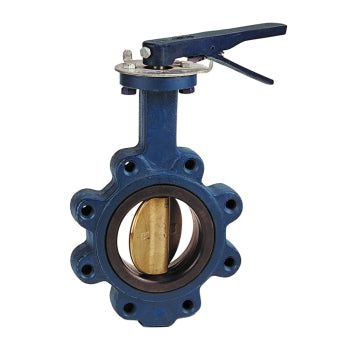

NIBCO NLJ310N N-200-235 Lug Style International Butterfly Valve 12 in 125/150 lb

Product Description

The NIBCO NLJ310N Butterfly Valve offers reliable performance for water applications. This model features a lug style design and is made of 12 inch cast iron. It can handle a pressure rating of 125/150 lb and operates effectively within a temperature range of up to two hundred twenty-five degrees Fahrenheit.

• Features a manual gear operated actuator for easy control
• Constructed from durable cast iron with an aluminum bronze disc
• Ideal for commercial systems and applications requiring reliable valve operation

Product Highlights

This valve provides a quarter-turn operation for open and close functionality. The extended neck design accommodates insulation requirements up to two inches.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Lug Style International

Technical Specifications

• Actuator Type: Manual Gear Operator
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Pressure Class: 125/150 lb
• Nominal Size: 12 in
• Series: N-200-235
• Temperature Rating: 225 deg F Continuous/250 deg F Intermittent
• Softgoods Material: Buna-N/EPDM
• Stem & Pin Material: 416 Stainless Steel
• Domestic/Import: Import
