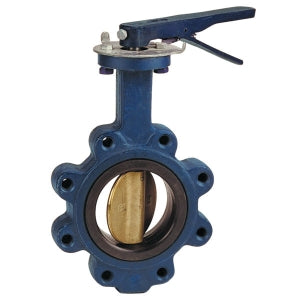

NIBCO NLJ310K N-200-235-GO Lug Style International Butterfly Valve 6 in Nominal

Product Description

The NIBCO NLJ310K is a butterfly valve designed for reliable control and management of fluid flow. This model features a lug style design and is suitable for various applications. The valve is made from cast iron with an aluminum bronze disc. It supports a gear-operated actuator and is rated for pressure classes of 125 and 150 pounds. Ideal for water systems, this valve aids in reducing downtime with its efficient quarter-turn operation.

• Suitable for water applications
• Gear operated actuator for easy handling
• Extended neck design for insulation

Product Highlights

This butterfly valve features an EPDM cartridge seat liner and an extended neck, making it versatile for insulation needs. It is not recommended for steam service but can operate at temperatures up to 250 degrees Fahrenheit intermittently.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NLJ310K

Technical Specifications

• Nominal Size: 6 in
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Stem & Pin Material: 416 Stainless Steel
• Softgoods Material: Buna-N/EPDM
• Dimensions: 15.62 in L
• Temperature Rating: 225 deg F Continuous / 250 deg F Intermittent
• Pressure Class: 125/150 lb
• Actuator Type: Gear Operated
• Series: N-200-235-GO
• Domestic/Import: Import
