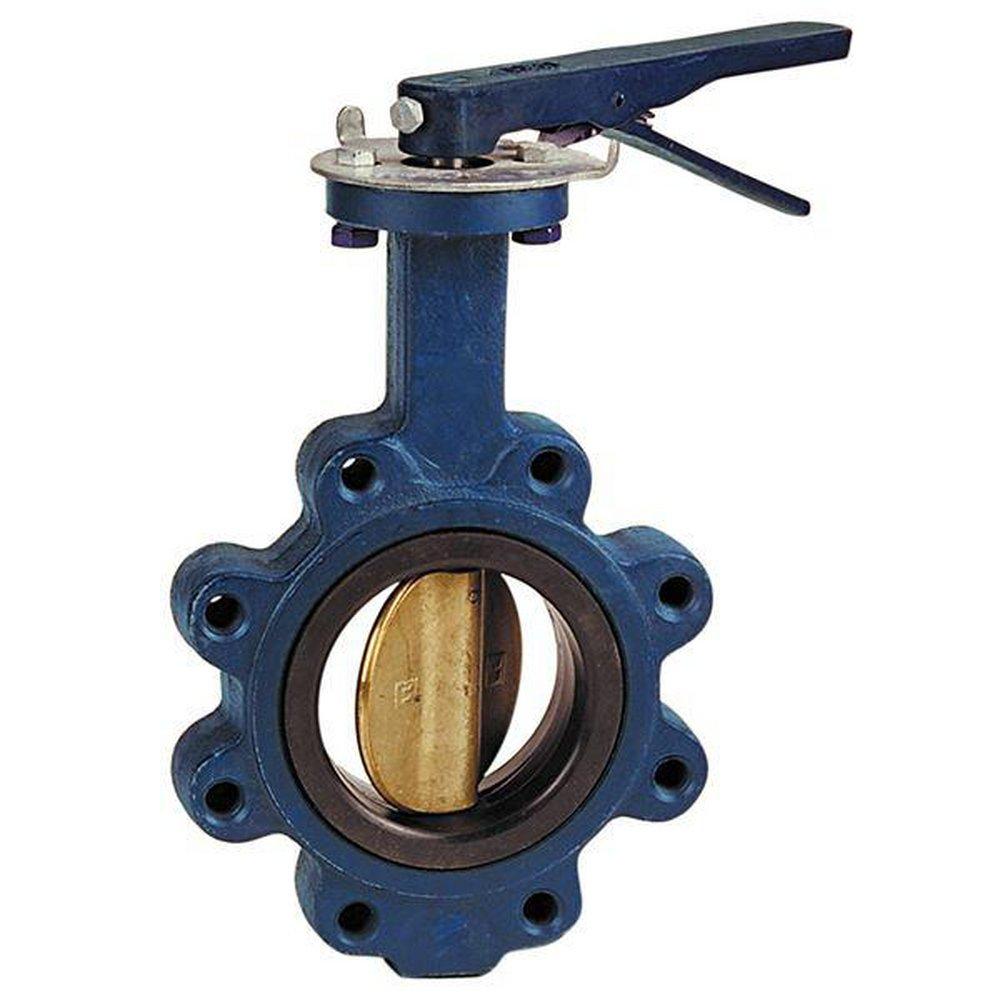

NIBCO NLJ300K N200235 Series 6 in Cast Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The NIBCO NLJ300K is a six-inch cast iron EPDM locking lever handle butterfly valve designed for varied applications. This valve is suitable for applications where water is the primary media. It features a manual gear operator and a lever-lock operating system, ensuring ease of use in various installations.

• Body material: Cast iron for durability
• Pressure rating: 200 psi for reliable performance
• Temperature range: Continuous service at 225 degrees Fahrenheit, intermittent service at 250 degrees Fahrenheit

Product Highlights

Designed for commercial systems, this valve utilizes a stainless steel stem with bronze bushings and an aluminum bronze disc to withstand high pressures and temperatures.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Actuator Type: Lever Operated

Technical Specifications

• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Softgoods Material: Buna-N/EPDM
• Temperature Rating: 225 degrees Fahrenheit Continuous / 250 degrees Fahrenheit Intermittent
• Pressure Class: 125/150 lb
• Stem and Pin Material: 416 Stainless Steel
• Series: N-200-235
• Media: Water
