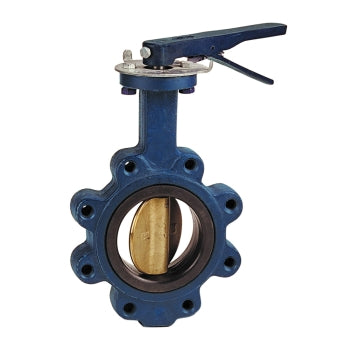

NIBCO NLJ300J N-200-235 Lug Style International Butterfly Valve 5 in Nominal

Product Description

The NIBCO NLJ300J is a cast iron butterfly valve designed for various water applications. This valve features a lever-operated actuator for easy operation and has a nominal size of five inches. The aluminum bronze disc and EPDM seat liner ensure durability and reliability in commercial systems.

• 200 psi valve pressure for reliable performance
• Extended neck allows for insulation of up to 2 inches
• Not recommended for steam service

Product Highlights

This valve is ideal for economical applications in water systems. It complies with standards like API-609 and MSS SP-67.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Lug Style International

Technical Specifications

• Actuator Type: Lever Operated
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Media: Water
• Nominal Size: 5 in
• Pressure Class: 125/150 lb
• Temperature Rating: 225 deg F Continuous / 250 deg F Intermittent
• Softgoods Material: Buna-N/EPDM
• Stem & Pin Material: 416 Stainless Steel
