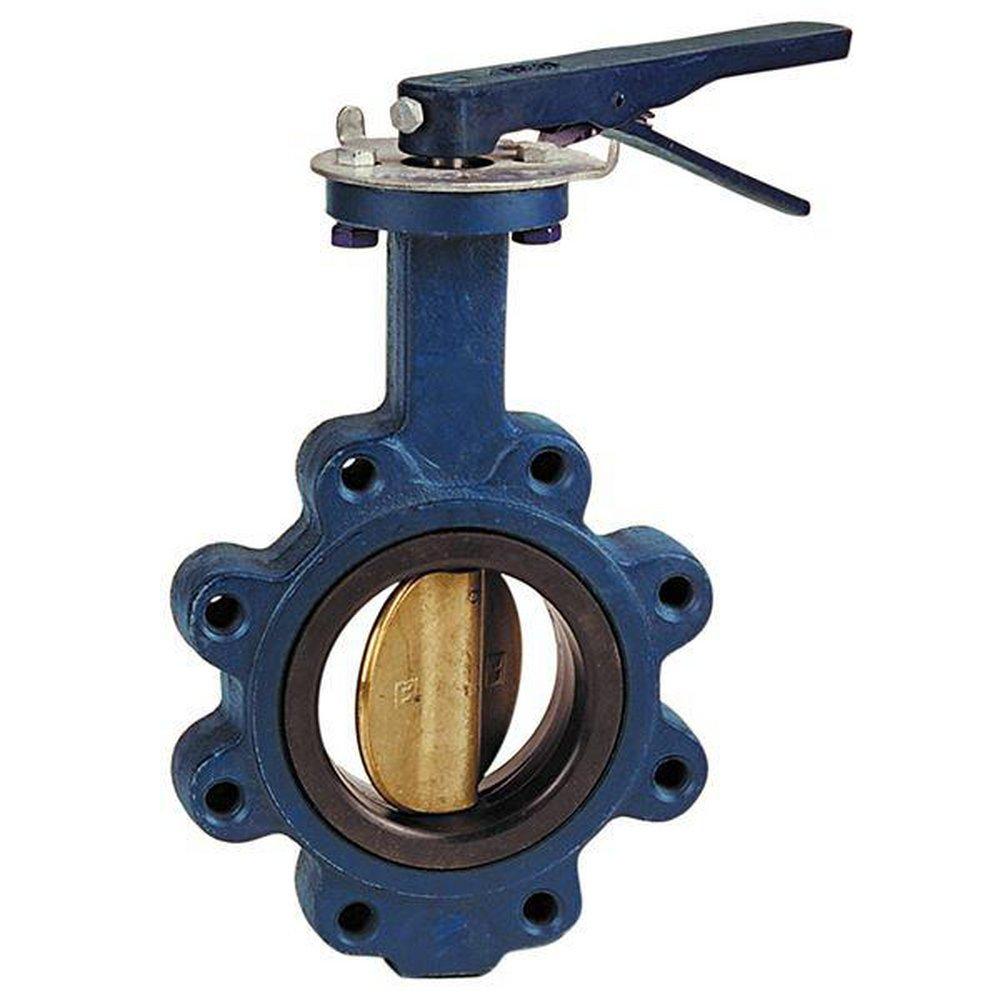

Nibco NLJ300H N200235 Series 4 in. Cast Iron EPDM Locking Lever Handle Butterfly Valve

Product Description

The Nibco NLJ300H butterfly valve from the N200235 series is designed for efficient flow control. This 4-inch valve features a cast iron body and EPDM cartridge seat liner, suitable for a variety of applications.

• 200 psi valve pressure
• Stainless steel stem with bronze bushings
• Extended neck for insulation up to 2 inches

Product Highlights

This Nibco butterfly valve provides reliable performance and easy operation with its locking lever handle. The cast iron construction and EPDM seat ensure durability, while the stainless steel stem and bronze bushings offer smooth functionality.

Product Information

Standard Information

• Brand: Nibco
• MPN: NLJ300H
• Series: N200235

Technical Specifications

• Nominal Size: 4 inches
• Valve Pressure: 200 psi
• Temperature Rating: 225 degrees F continuous, 250 degrees F intermittent
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Stem Material: 416 Stainless Steel
• Seat Material: EPDM
• Actuator Type: Lever Operated
• Standards/Approvals: API-609, MSS SP-25, MSS SP-67
