Product Description

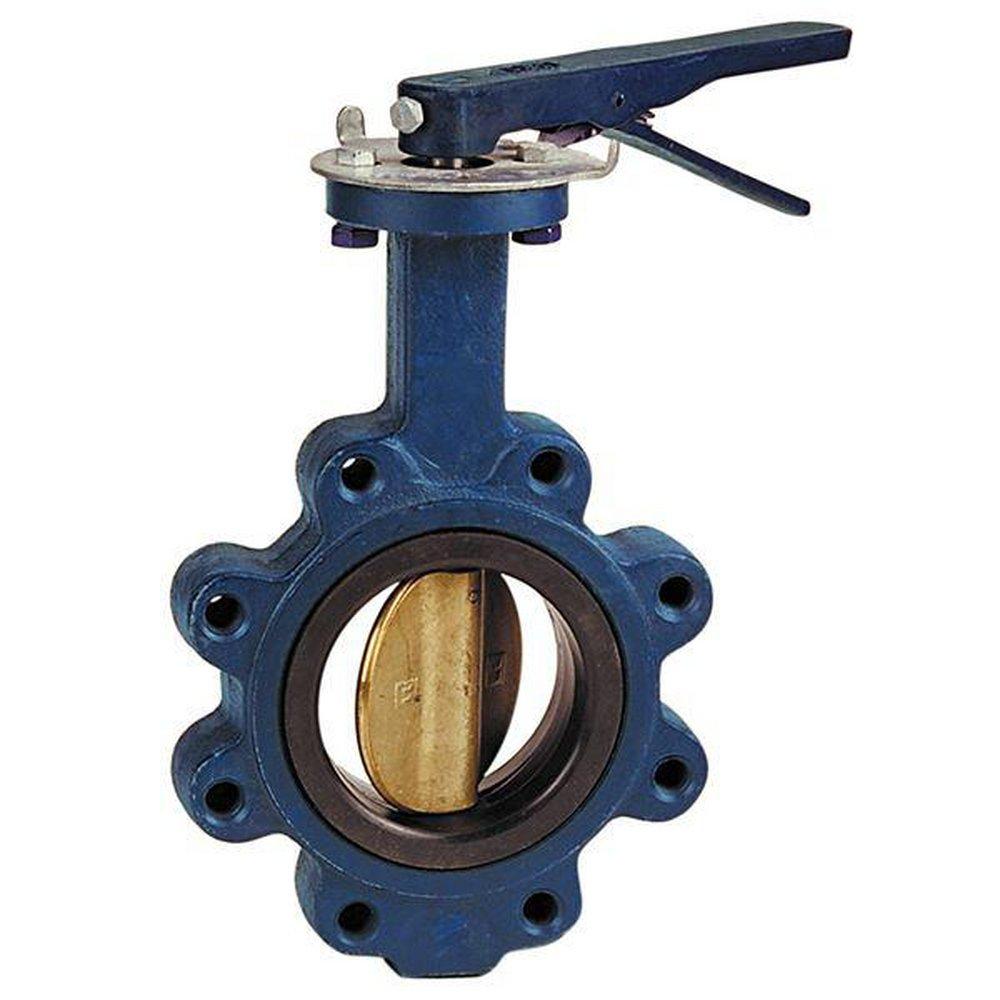

The NIBCO NLJ300F N200235 Series is a 3-inch Lug Style Butterfly Valve designed for efficient flow control in piping systems. Manufactured from durable cast iron with an EPDM seat liner, this valve is optimized for water media applications and features a locking lever handle for secure operations.
- Pressure rated up to 200 psi, suitable for a wide range of commercial systems.
- Features an extended neck to accommodate up to 2 inches of insulation.
- Equipped with a stainless steel stem and bronze bushings for reduced wear and enhanced durability.
Product Highlights
This valve is ideal for use in non-steam services, supporting temperatures up to 225 degrees Fahrenheit continuously and 250 degrees Fahrenheit intermittently.
Product Information
Standard Information
-
Material: Cast Iron body, EPDM seat liner, Aluminum Bronze disc.
-
Operation: Manual with a locking lever handle.
-
Safety Compliance: Not suitable for steam applications.
Technical Specifications
-
Pressure Rating: 200 psi.
-
Temperature Capacity: 225 degrees F continuous, 250 degrees F intermittent.
-
Stem Material: Stainless steel with bronze bushings.
-
Actuator: Lever-operated.
