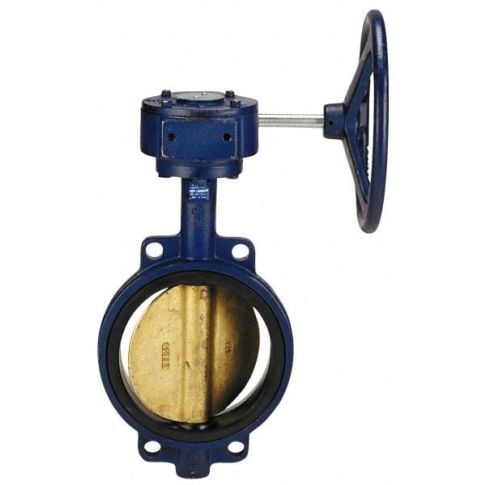

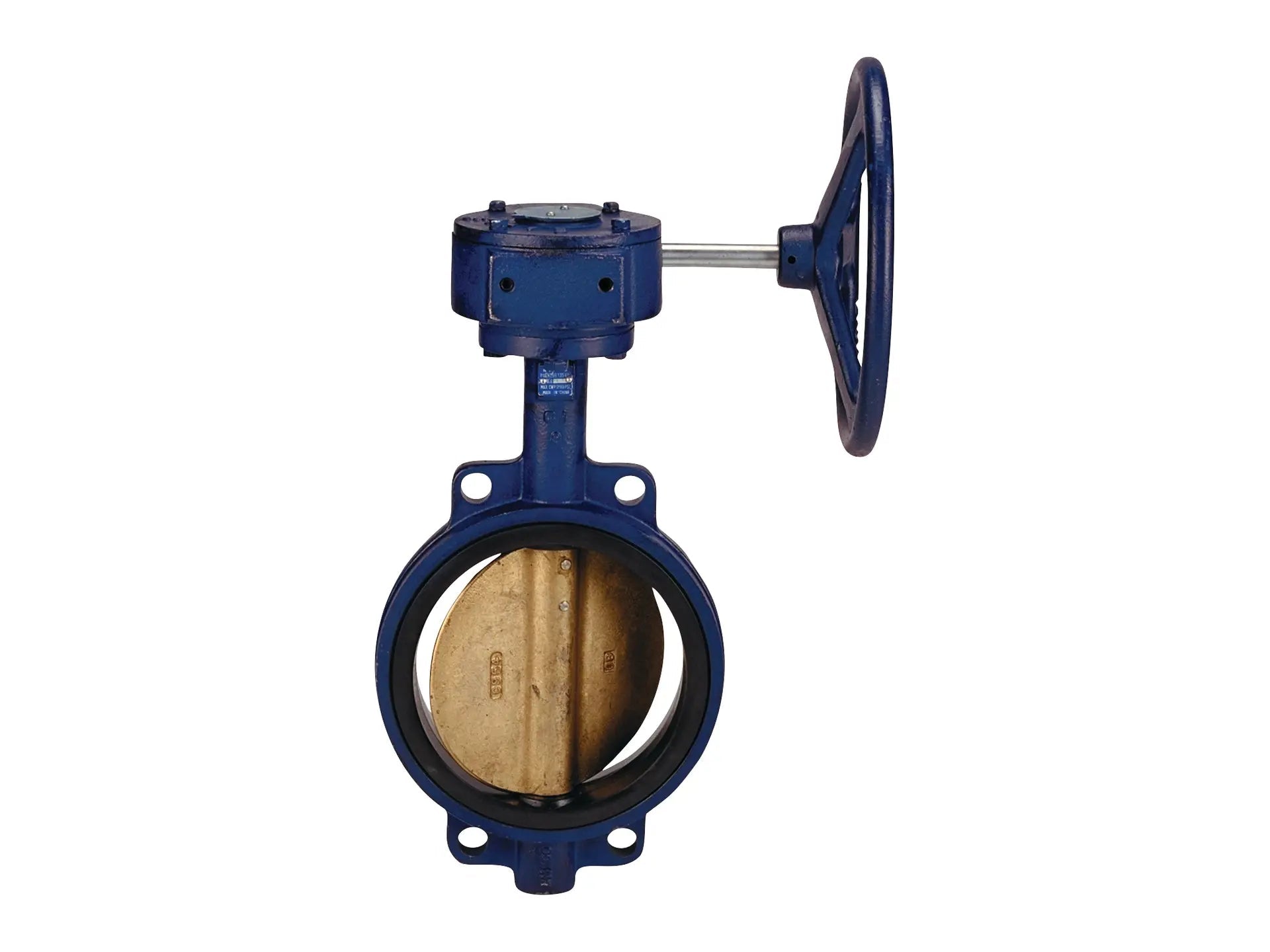

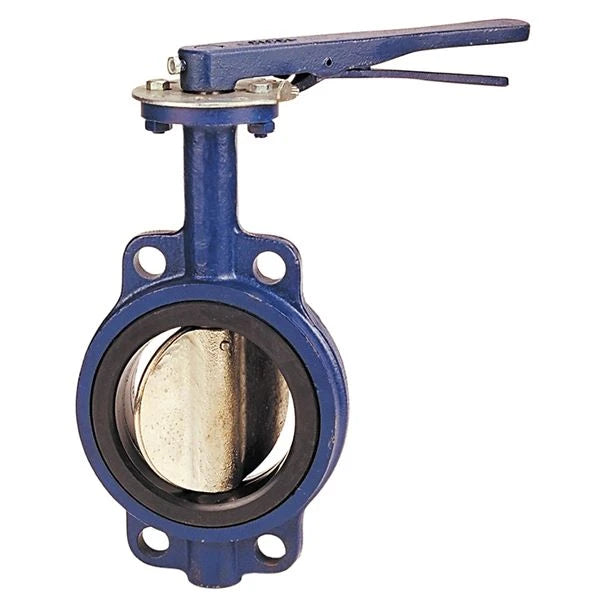

Nibco NLJ110L Butterfly Valve, Wafer, 8 Inch Size, EPDM Rubber

Product Description

The Nibco NLJ110L butterfly valve is a wafer-style valve with an 8-inch size and EPDM rubber seat. This valve provides in-line bubble-tight shutoff at 200 psi and is recommended for quick installation and removal from piping. It performs well in commercial applications including HVAC and hot/cold potable water.

• Wafer style connection
• EPDM cartridge seat liner
• Quarter-turn operation

Product Highlights

This NIBCO butterfly valve is designed for versatile and economical applications in commercial systems, providing ease of operation with quarter-turn open to close.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLJ110L
• Country of Origin: China

Technical Specifications

• Item: Butterfly Valve
• Connection Type: Wafer
• Seat Material: EPDM Rubber
• Turns/operation: Quarter Turn
• Type: Butterfly Valve
• Valve Operator: Gear Operator
• Valve Size: 8"
• Material: Cast Iron
• Nominal Pipe Size: 8"
• End Connection Type: W -- Wafer
• Butterfly Operator: Gear Operator
• Turns Operations: Quarter-Turn
• Seat Seal Material: EPDM Rubber
• Pressure Rating (psi): 200 psi rated pressure
• Potable Water Code: LL Compliant NSF/ANSI 372
• Manufacturer: NIBCO
• Part Number: NLJ110L
• Model: N-200-135-GO
• Series: N200135
• Length: 20.47"
• Width: 10.55"
• Height: 6.97"
