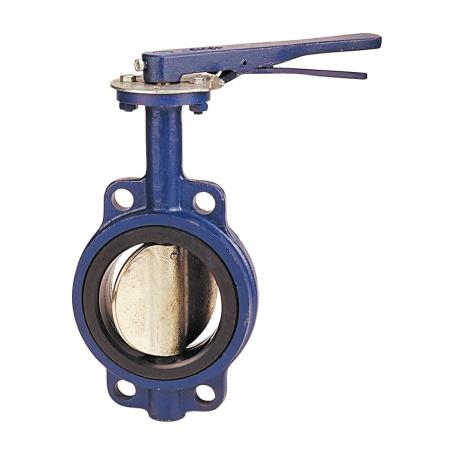

NIBCO NLJ100L Butterfly Valve 8 Inch Wafer EPDM Aluminum Bronze Lever Lock

Product Description

The NIBCO NLJ100L butterfly valve features an 8-inch wafer body design suitable for a wide range of liquid and gas applications. This valve controls flow with a lever-operated actuator and is constructed from a durable cast iron body with an aluminum bronze disc and Buna-N/EPDM seating.

• Lever-operated actuator for easy operation.
• Cast iron body with Buna-N/EPDM seal suitable for various media including water.
• Aluminum bronze disc offers enhanced durability and corrosion resistance.

Product Highlights

This valve is designed for maximum efficiency and reliability in commercial systems, boasting a temperature tolerance up to 225 degrees Fahrenheit, with intermittent service to 250 degrees Fahrenheit. It's ideal for non-steam applications.

Product Information

Standard Information

• Pressure Class: 125/150 lb
• Temperature Rating:: 225 deg F Continuous, 250 deg F Intermittent

Technical Specifications

• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Stem & Pin Material: 416 Stainless Steel
• Softgoods Material: Buna-N/EPDM
• Actuator Type: Lever Operated
