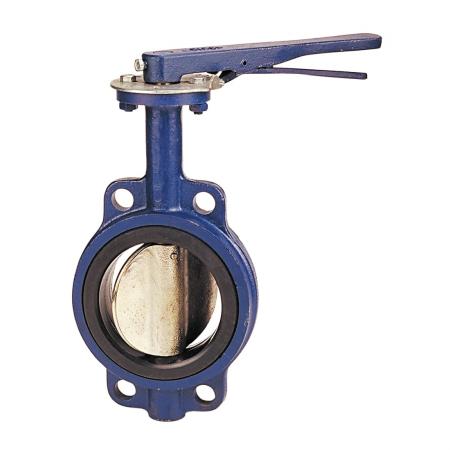

NIBCO NLJ100H Butterfly Valve 4 Inch Wafer Body EPDM Seat

Product Description

The NIBCO model NLJ100H is a 4 inch wafer butterfly valve with an EPDM seat and aluminum bronze disc, designed for efficient water flow control. Lever-operated, this valve is optimal for commercial systems where moderate pressure handling is required.

• Durable cast iron body with a 416 stainless steel stem for robust performance.
• EPDM seat liner enhances sealing and longevity under varying conditions.
• Extended neck design allows easy installation and accessibility.

Product Highlights

This valve operates effectively within 225 degrees Fahrenheit continuously, making it suitable for many commercial fluid systems. It features a lever-lock system for secure and easy operation.

Product Information

Standard Information

• Type: Wafer Style International
• Actuator Type: Lever Operated
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze

Technical Specifications

• Pressure Class: 125/150 lb
• Temperature Rating: 225 degrees F Continuous/250 degrees F Intermittent
• Softgoods Material: Buna-N/EPDM
• Stem & Pin Material: 416 Stainless Steel
