Product Description

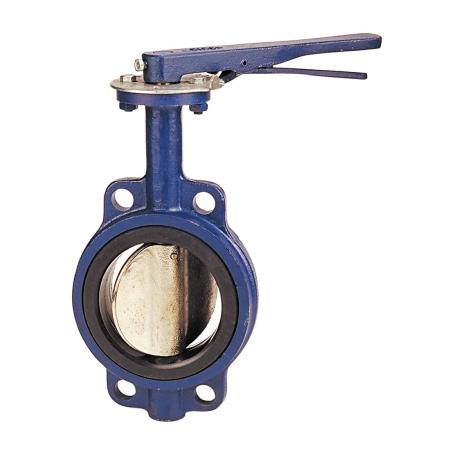

The NIBCO NLJ100F is a 3-inch butterfly valve designed for efficient flow control with a wafer body construction suitable for confined spaces. Engineered for durability, it features a cast iron body and an aluminum bronze disc, ensuring robust performance in commercial systems.
- Lever operated for easy use and quick operation.
- Manufactured with an EPDM seat and 416 stainless steel stem for enhanced corrosion resistance.
- Can operate under pressure up to 200 psi, with temperature tolerance from ambient up to 250 degrees Fahrenheit.
Product Highlights
Utilizing a lever-lock mechanism, the NIBCO NLJ100F offers a reliable sealing solution, making it suitable for various commercial applications where water and other mild fluids are transported.
Product Information
Standard Information
-
Material: Cast Iron Body, Aluminum Bronze Disc
-
Size: 3 inches Nominal
Technical Specifications
-
Actuator Type: Lever Operated
-
Pressure Class: 125/150 lb
-
Temperature Rating: 225 degrees Fahrenheit Continuous, 250 degrees Fahrenheit Intermittent
-
Media: Water
-
Disc Material: Aluminum Bronze
-
Stem & Pin Material: 416 Stainless Steel
-
Softgoods Material: Buna-N/EPDM
-
Manufacturer: NIBCO INC
