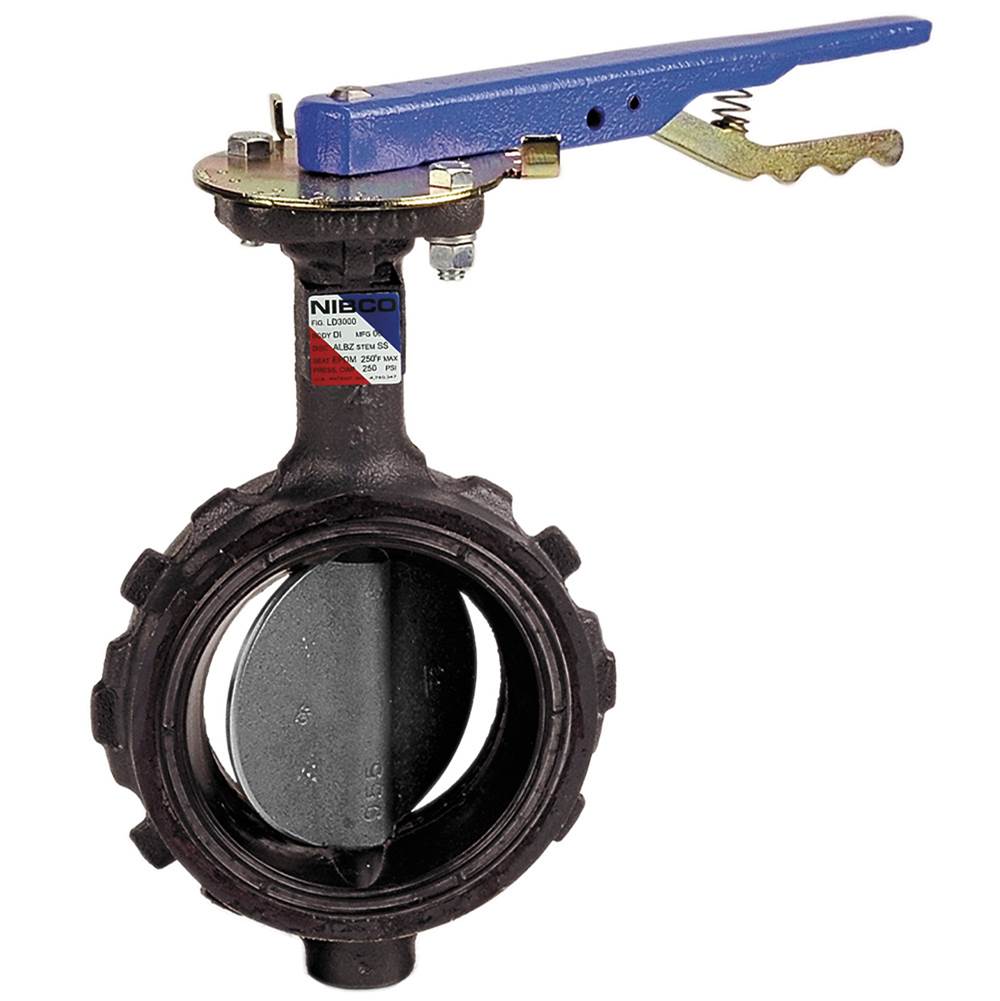

NIBCO NLH243L WD30223 8 Wafer Bfv L/LK Hndl Duct Iron

Product Description

NIBCO NLH243L is a wafer-style butterfly valve designed for various applications. It features a locking handle actuator for secure operation and is constructed with a ductile iron body. This valve is equipped with a stainless steel disc and stem, capable of handling water media. The product is suitable for commercial and light industrial uses.

• Pressure rated at 250 psi.
• Operational temperature of up to 225 degrees Fahrenheit continuously.
• Extended neck design for enhanced functionality.

Product Highlights

The NLH243L is built for durability with a robust construction and reliable performance in light industrial applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: WD-3022

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Media: Water
• Nominal Size: 8 in
• Pressure Class: 125/150 lb
• Temperature Rating: 225 degrees Fahrenheit Continuous / 250 degrees Fahrenheit Intermittent
• Softgoods Material: EPDM
• Stem & Pin Material: Stainless Steel
