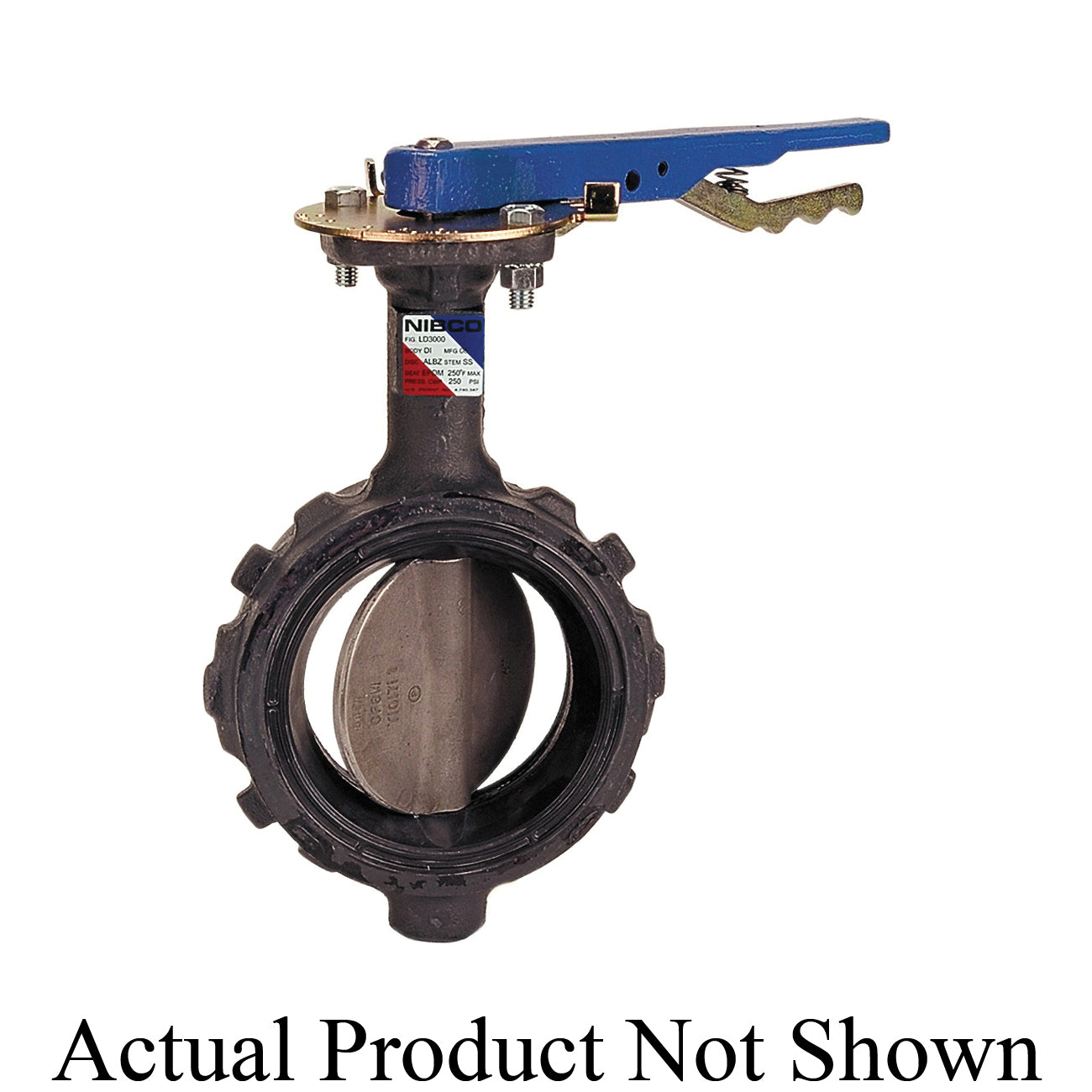

NIBCO NLH243K Wafer Style Butterfly Valve 6 in Nominal 125/150 lb

Product Description

The NIBCO NLH243K is a wafer style butterfly valve designed for reliable operation in various applications. This valve features a ductile iron body, a stainless steel disc, and an EPDM liner, making it suitable for water media. It has a unique quarter-turn operation, allowing for easy open and close functionality. The locking handle actuator ensures secure positioning.

• Quarter-turn operation for simplicity
• EPDM seat liner compatible with a range of chemicals
• Extended neck for insulation up to two inches

Product Highlights

This butterfly valve is ideal for commercial and light industrial use. It withstands pressures up to 250 psi and operates effectively in temperatures ranging from 225 degrees Fahrenheit continuously to 250 degrees Fahrenheit intermittently.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: Wafer Style Butterfly Valve

Technical Specifications

• Actuator Type: Locking Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Pressure Class: 125/150 lb
• Series: WD-3022
• Nominal Size: 6 in
• Temperature Rating: 225 degrees F Continuous / 250 degrees F Intermittent
• Softgoods Material: EPDM
• Stem & Pin Material: Stainless Steel
