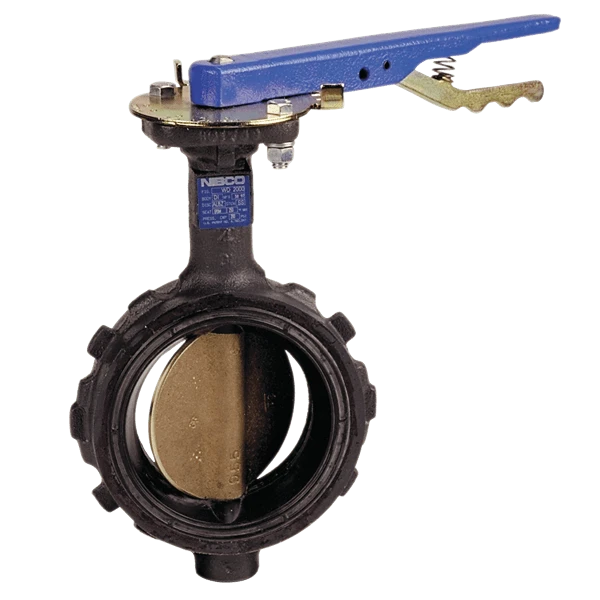

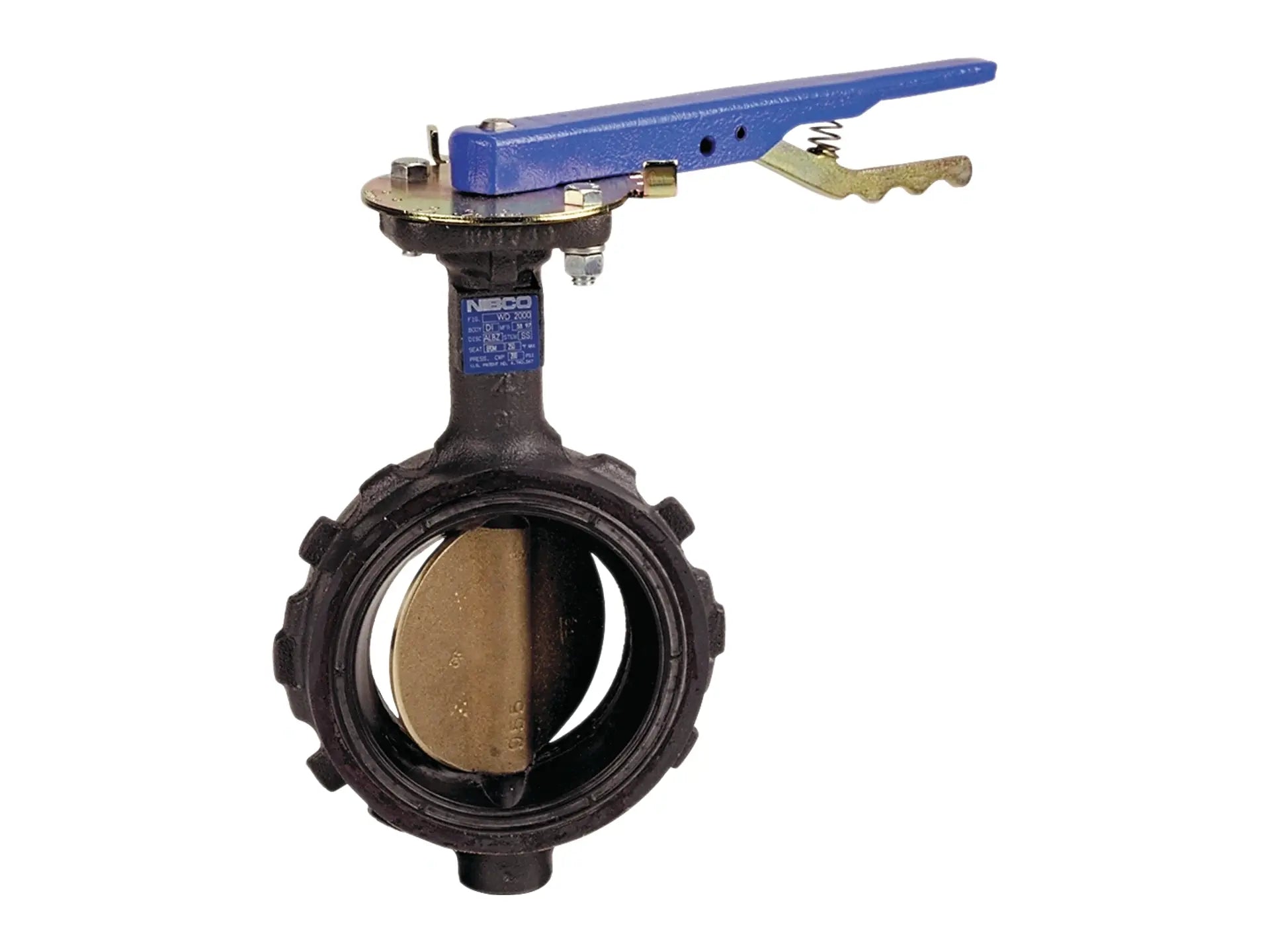

Nibco NLH110L WD-20005 Wafer Style Butterfly Valve, 8 in

Product Description

The NIBCO NLH110L WD-20005 wafer type butterfly valve provides bubble tight shut-off at 200 psi. This valve is ideal for commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water. Features a quarter-turn (90 deg) open to close operation.

• 225 deg F continuous and 250 deg F intermittent service
• Stainless steel stem with copper bushings
• Operating mechanism - Bare stem, infinite position plate and lock, lever lock, manual gear operator

Product Highlights

The NIBCO butterfly valves are a versatile and economical valve option in commercial, mechanical and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLH110L

Technical Specifications

• Brand: NIBCO
• Manufacturer: NIBCO INC.
• Product Type: VALVE
• Size: 8 Inch
• Type: Butterfly Valve
• Material: Ductile Iron
• Valve Operator: Gear Operator
• Turns/Operation: Quarter-Turn
• Actuator Type: Gear
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Domestic/Import: Domestic
• Media: Water
• Nominal Size: 8 In
• Pressure Class: 125/150 lb
• Series: WD-20005
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel (Stem)
• Temperature Rating: 225 deg F
• Valve Type: Butterfly Valve
• Connection: 8" Wafer
• Lead-Free: Yes
• Maximum Pressure: 200 psi
• Maximum Temperature: 250 F
• Handle Style: Gear-Operated
• Stem Material: Stainless Steel
• Seat Material: EPDM
• Connection Size: 8"
• Connection Type: Wafer
